CPCD45T94500 kg

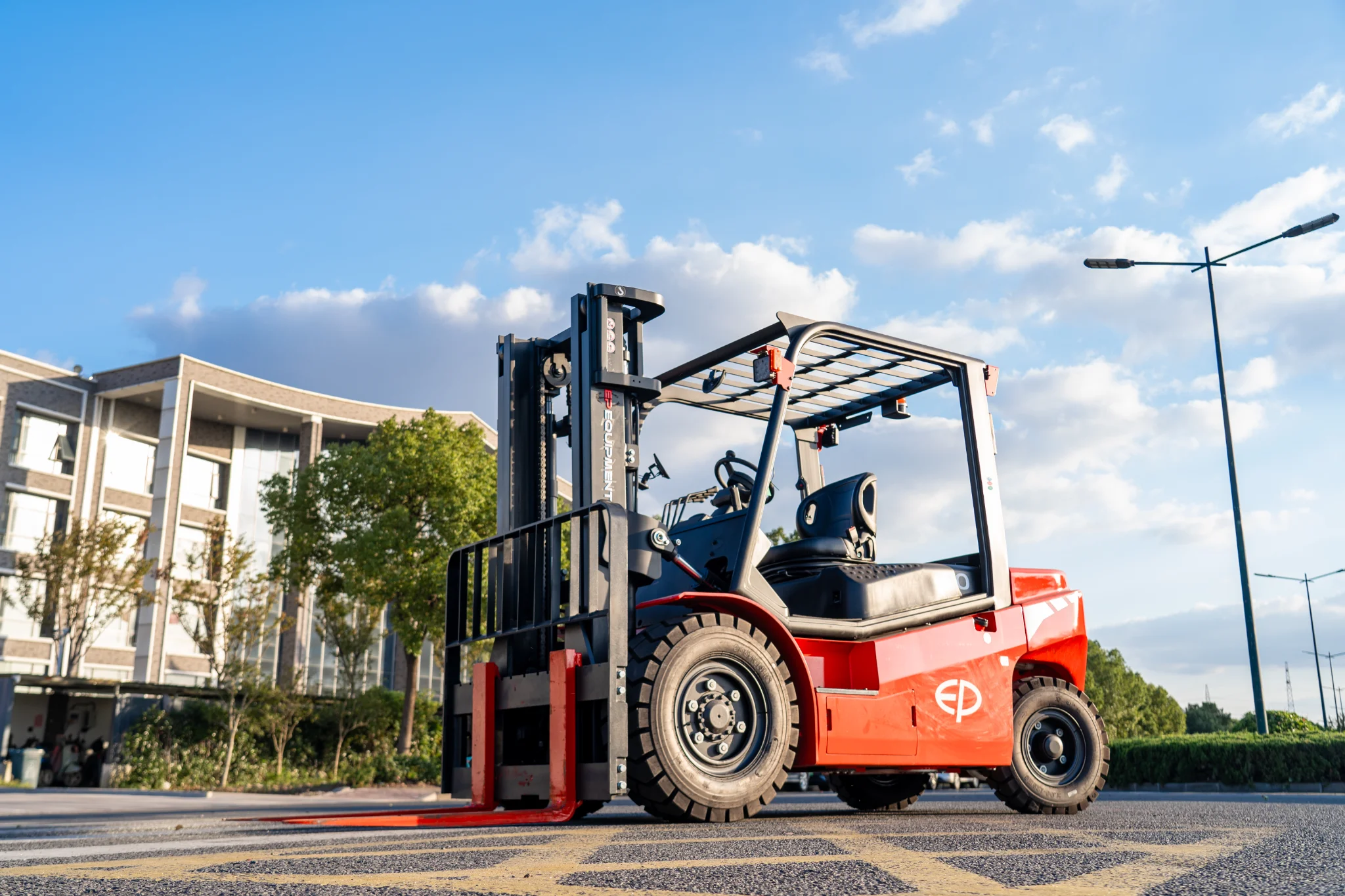

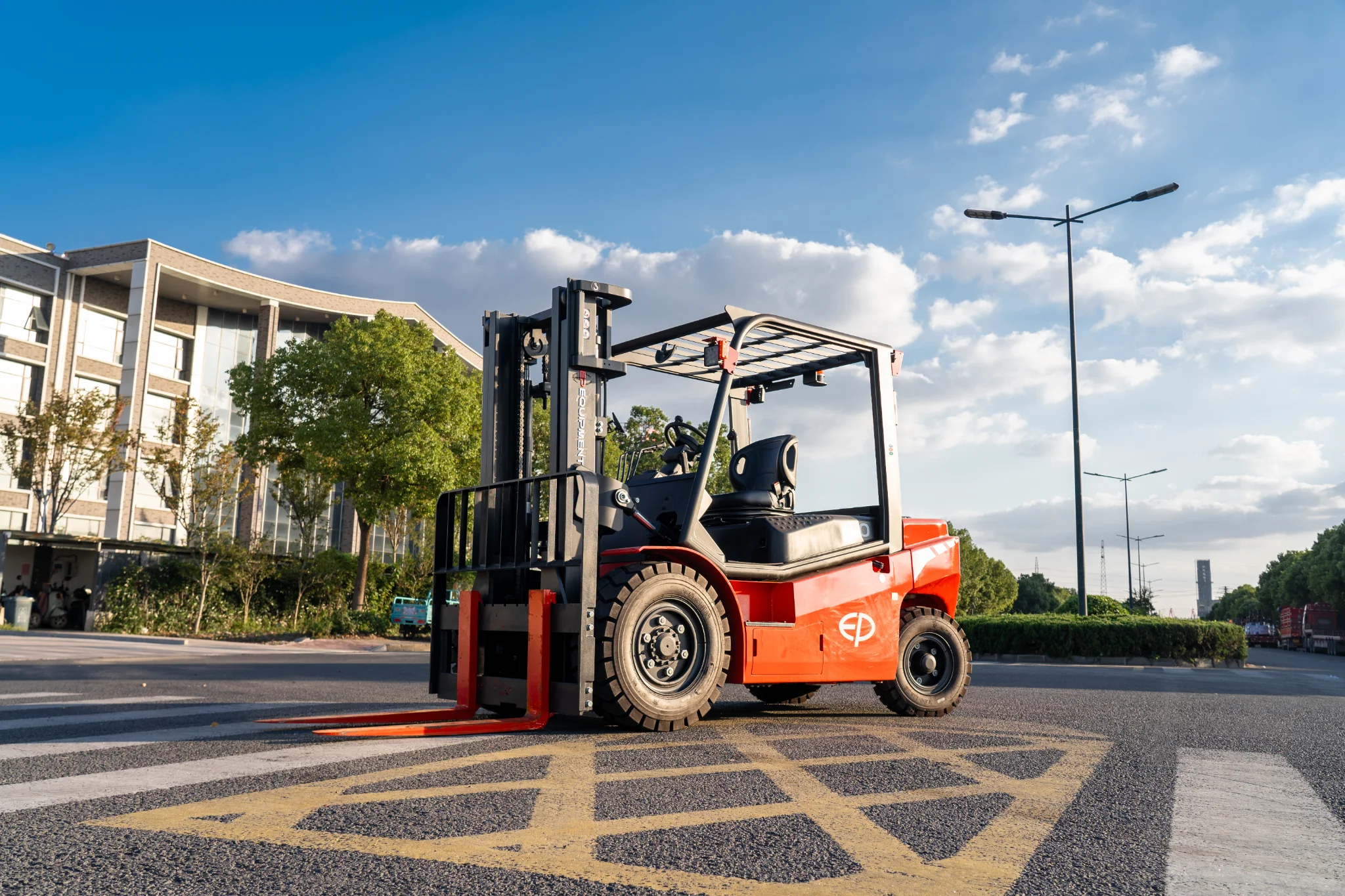

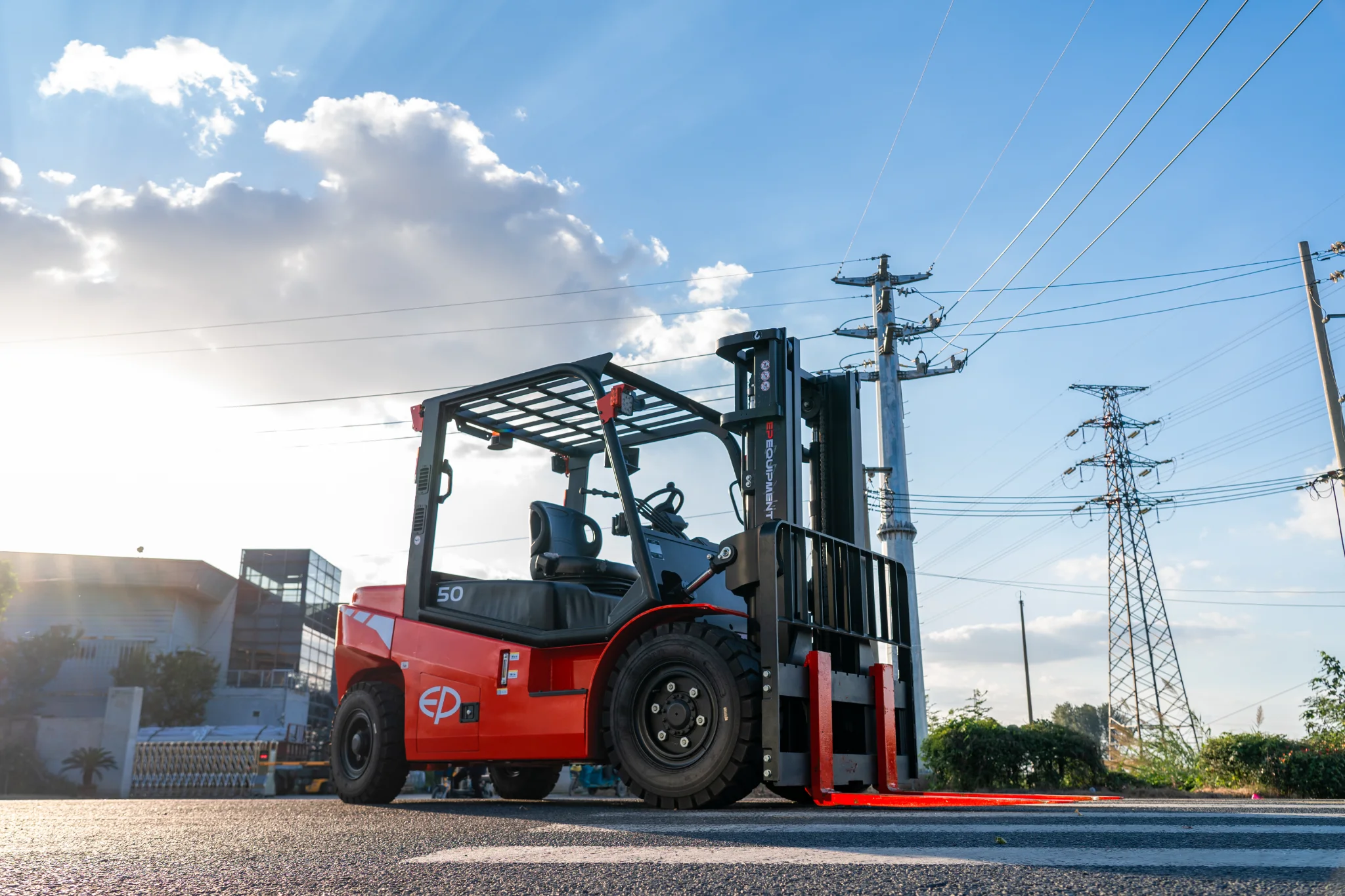

CPCD45T9 Diesel Counterbalance Forklift (4.5 t)
Workhorse 4.5 t diesel counterbalance forklift with a Mitsubishi S6S engine, 2/1 electro-hydraulic transmission and 28% gradeability for yards, mills and ports.
Capacity
4500 kg
Drive
Diesel
Max Lift Height
7000 mm
Travel Speed
25/26 km/h

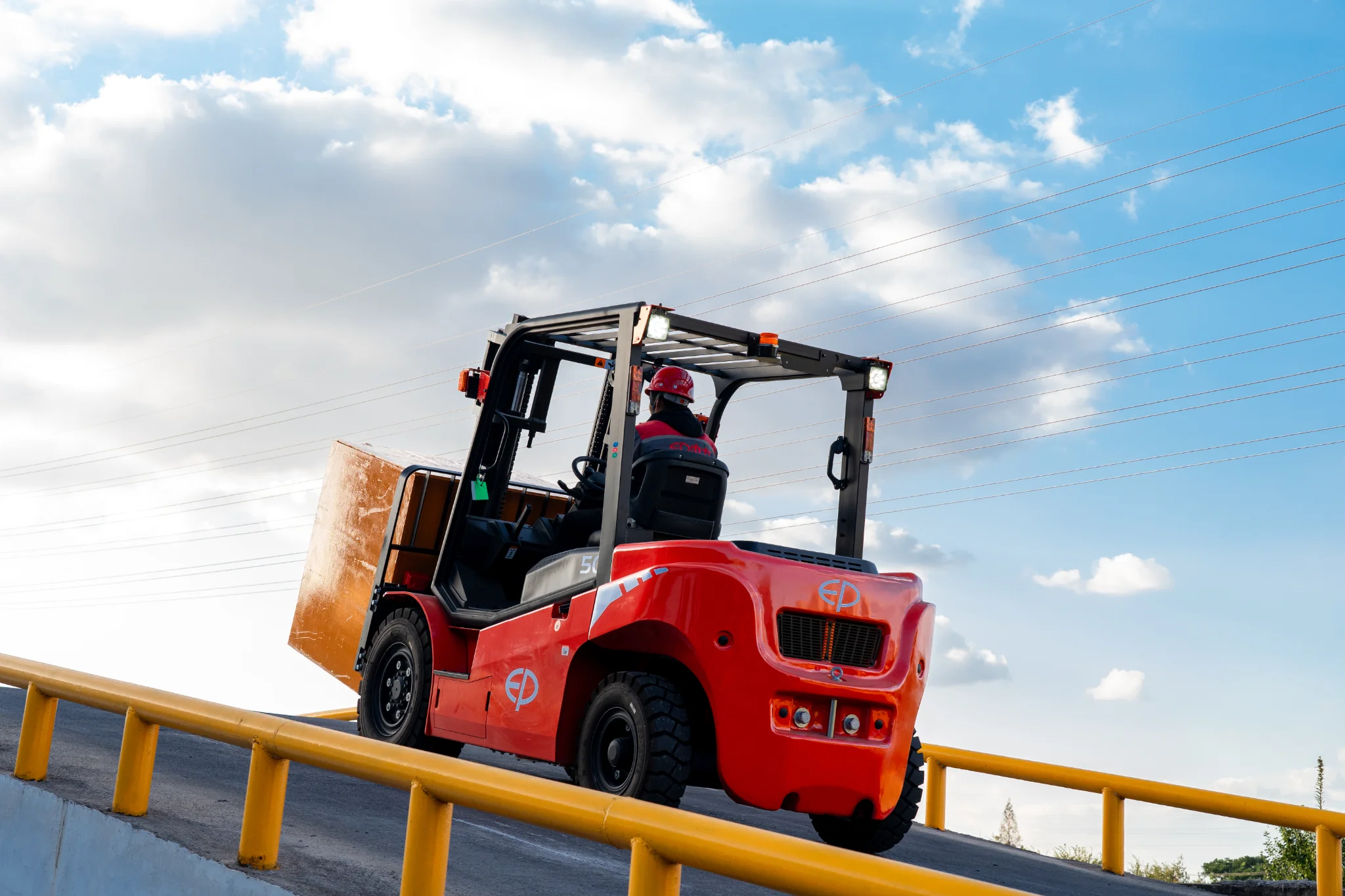

Gradeability
28/20 %
Service Weight
6500 kg
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
CPCD45T9
Drive
Diesel
Operator type
Seated
Rated capacity
4500 kg
Load centre distance
500 mm
Load distance, centre of drive axle to fork
545 mm
Service weight
6500 kg
Tyres
Pneumatic
Wheels, number front/rear (x=drive wheels)
2X/2
Drive motor rating S2 60 min
Mitsubishi S6S kW
Transmission type
Electro-hydraulic
Cylinder count/Displacement
6/4.96/L
Fuel tank capacity
90L
Gear position, front/rear
2/1
Max. torque/Speed
260/1700Nm/rpm
Dimensions
Wheelbase
2100 mm
Axle loading, laden front/rear
9815/1185 kg
Axle loading, unladen front/rear
2820/3680 kg
Tyre size, front
300-15-20PRmm
Tyre size, rear
7.00-12-14PRmm
Tread width, front
1179 mm
Tread width, rear
1190 mm
Tilt of mast/fork carriage forward/backward
6/12 °
Height, mast lowered
2250 mm
Free lift
150 mm
Lift
3000 mm
Height, mast extended
4177 mm
Height of overhead guard (cabin)
2250 mm
Seat height relating to SIP/stand height
1283.5 mm
Coupling height
748 mm
Overall length
4310 mm
Overall width
1495 mm

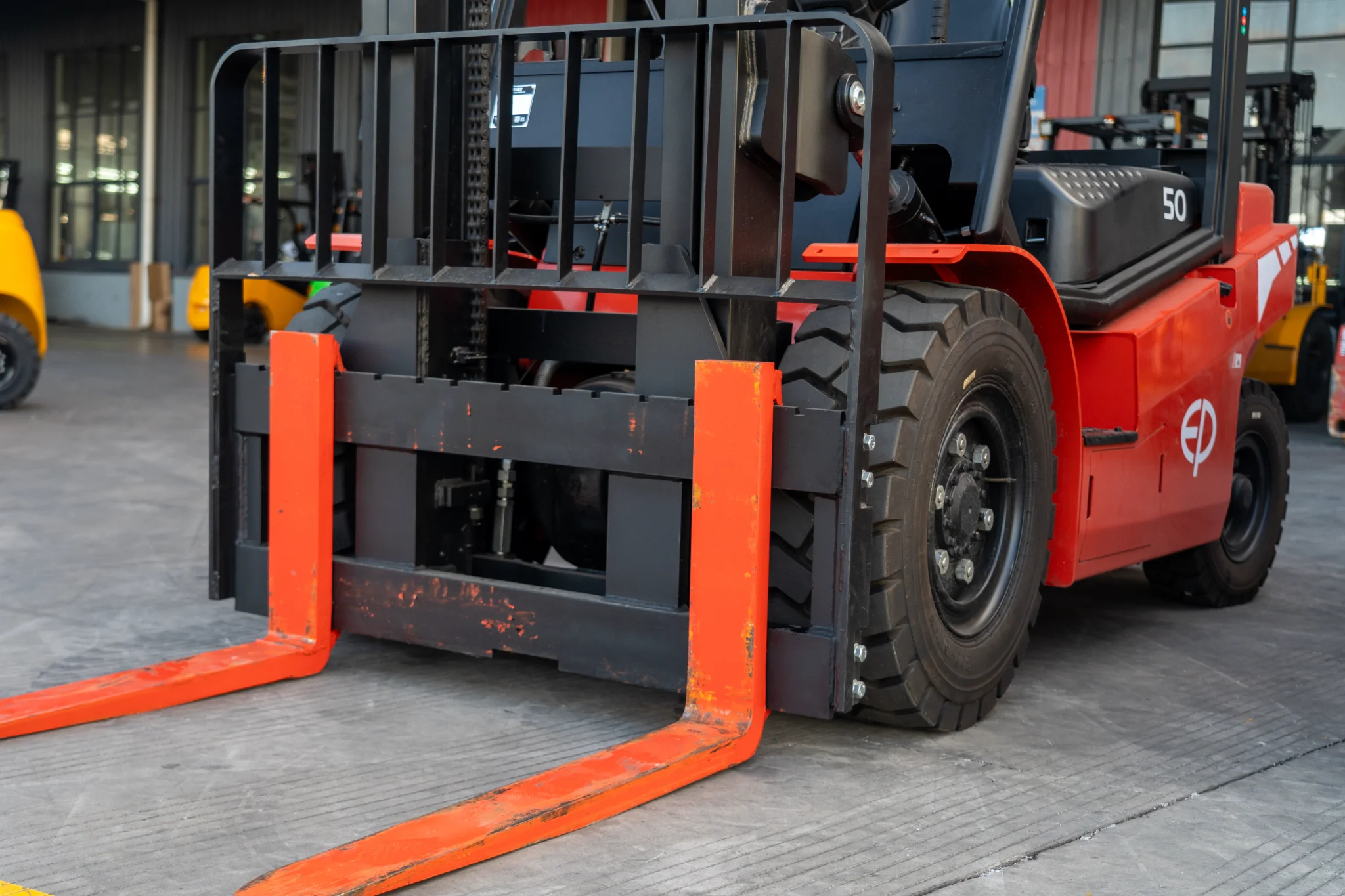

Fork dimensions
50/150/1070 mm
Fork carriage ISO 2328, class/type A, B
3A
Fork carriage width
1380 mm
Ground clearance, laden, below mast
150 mm
Ground clearance, centre of wheelbase
208 mm
Aisle width for pallets 1000×1200 crossways
4680 mm
Aisle width for pallets 800 × 1200 lengthways
4880 mm
Turning radius
2930 mm
Lift speed, laden/unladen
0.53/0.56 m/s
Lift motor rating at S3 15%
52/2300 kW
Max lift height
7000 mm
Performance
Travel speed, laden/unladen
25/26 km/h
Lowering speed, laden/unladen
0.43/0.40 m/s
Max. drawbar pull, laden/unladen
29000/NAN
Max. gradeability, laden/unladen
28/20 %
Service brake
Hydraulic - foot pedaltype
Parking brake
Mechanical, lever type
Operation & Environment
Steering design
Hydraulic
Length to face of forks
3240 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
