EFL25-PRO2500 kg

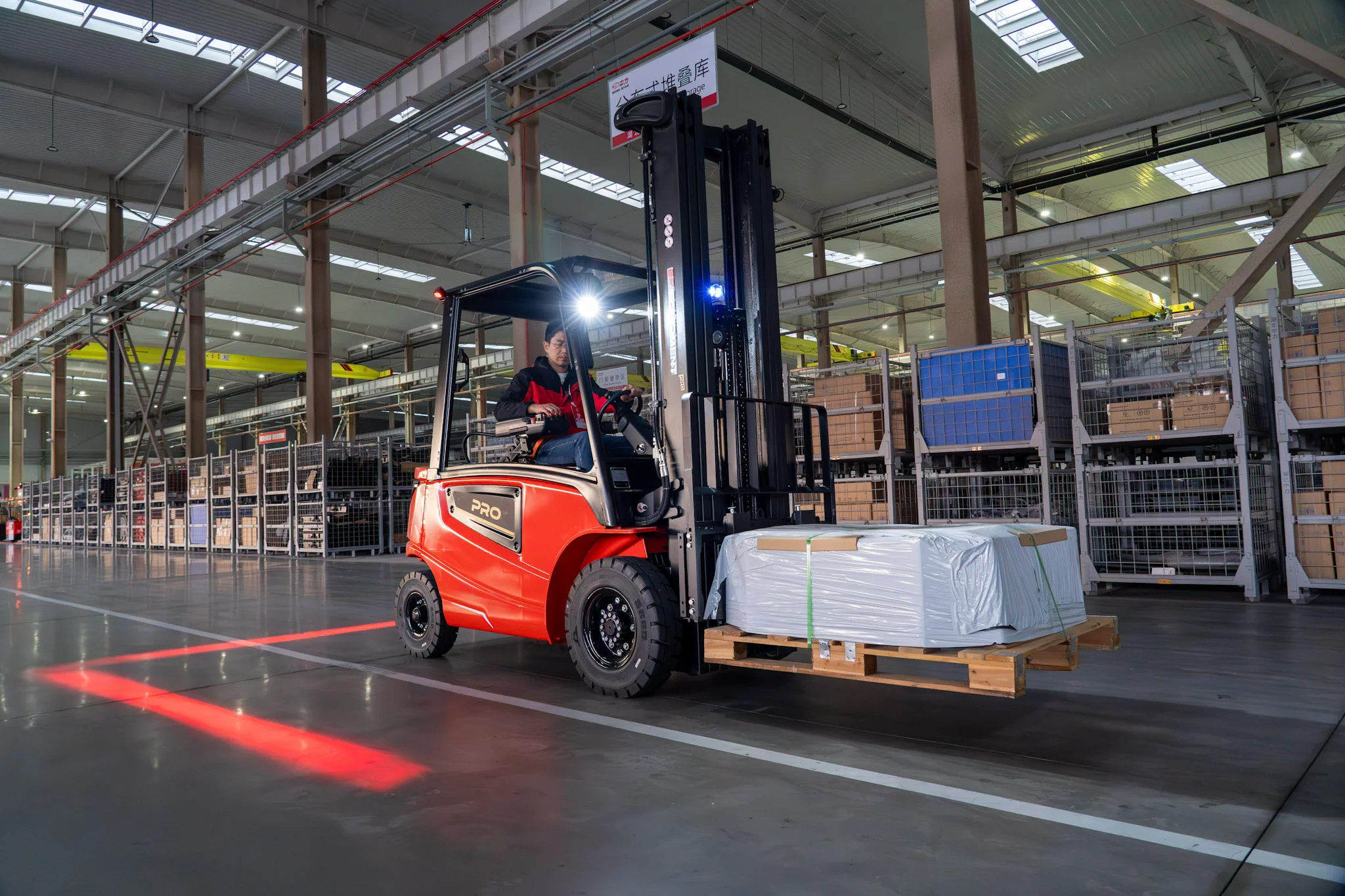

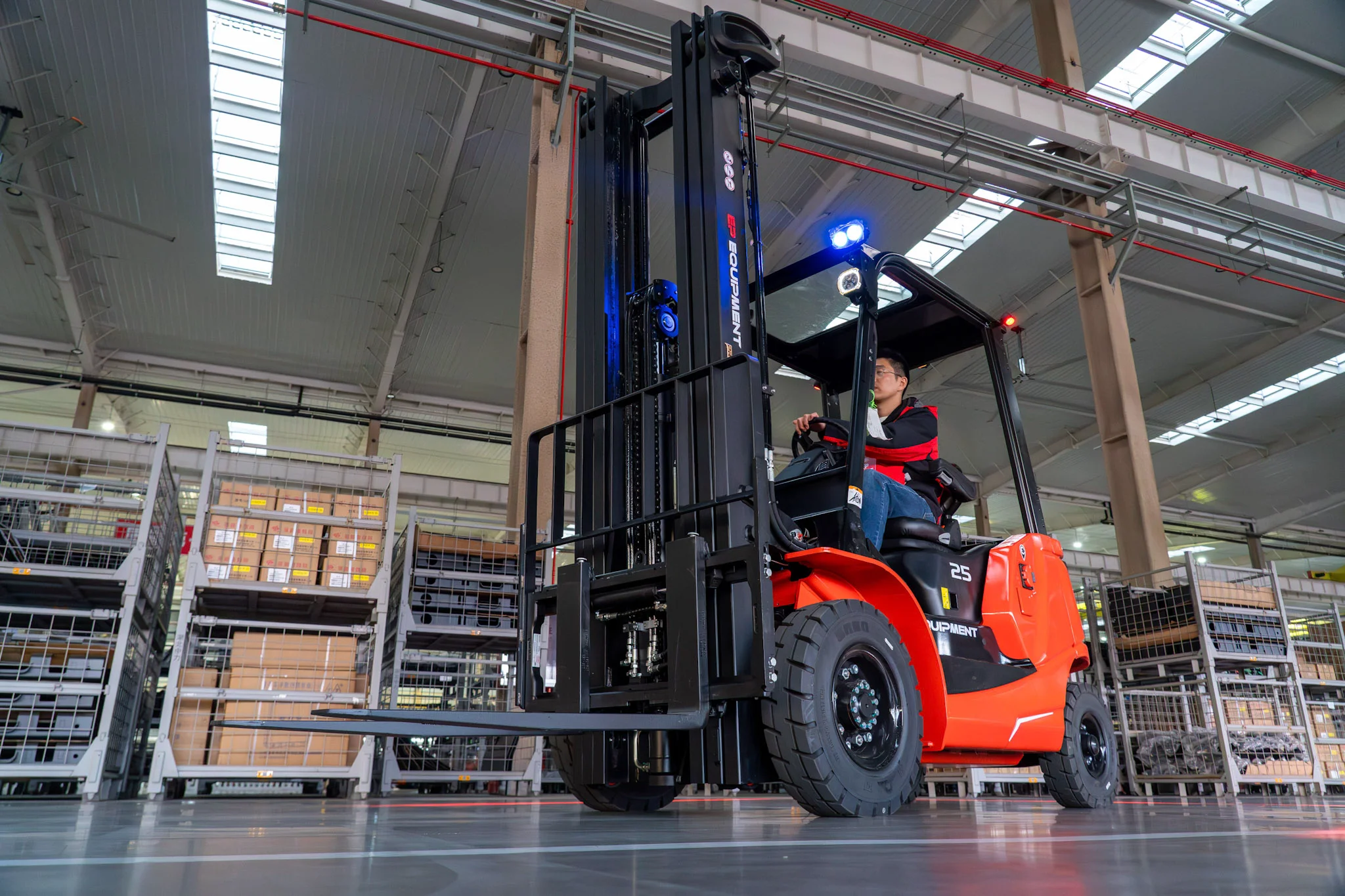

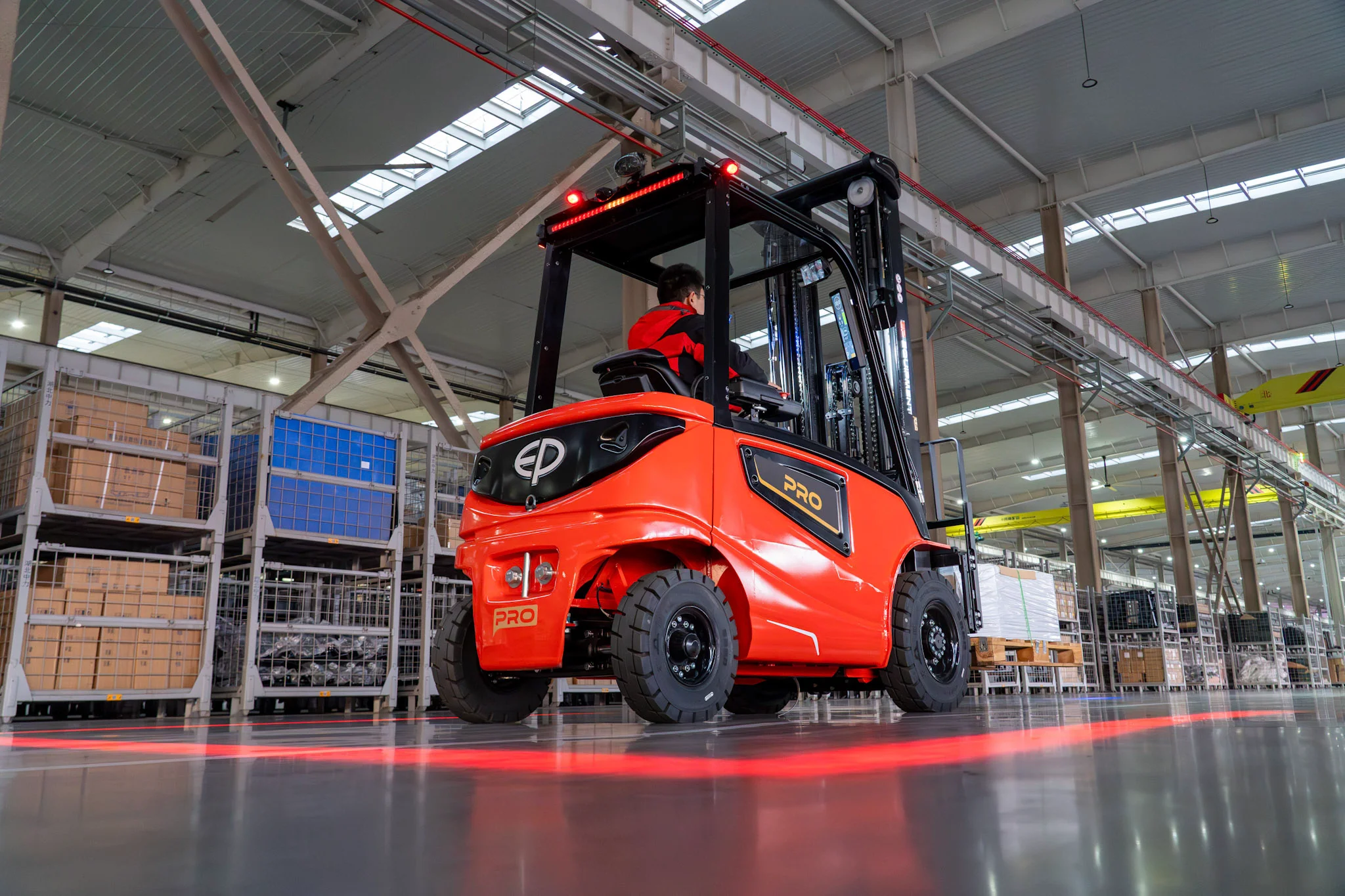

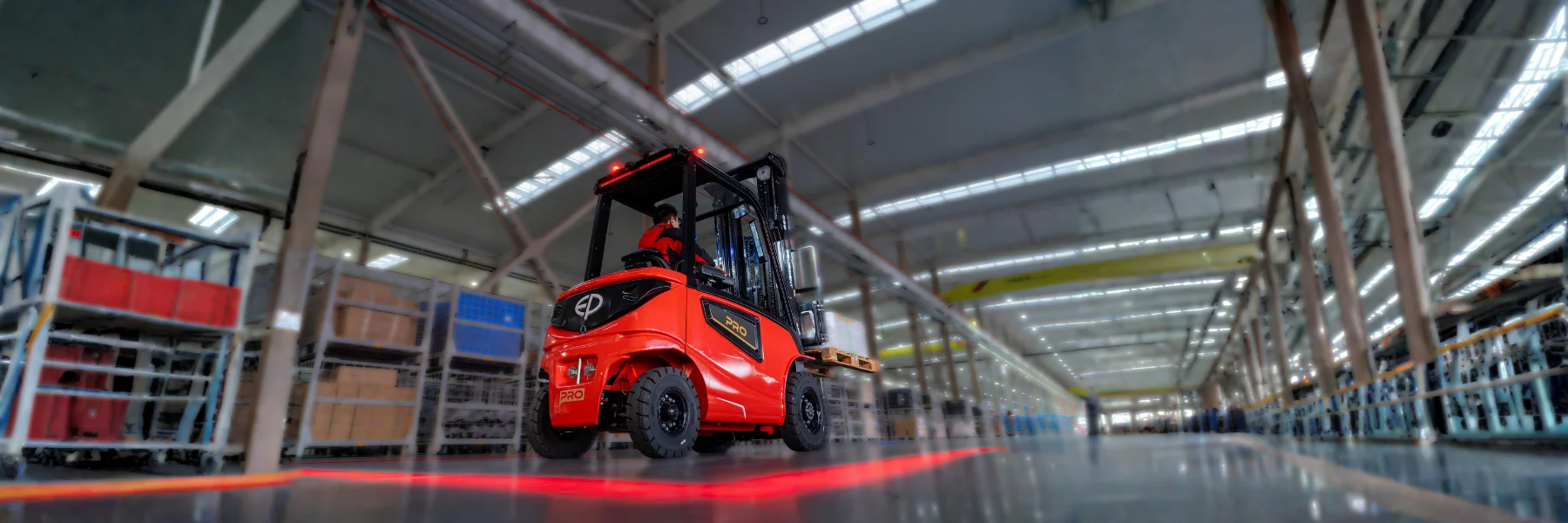

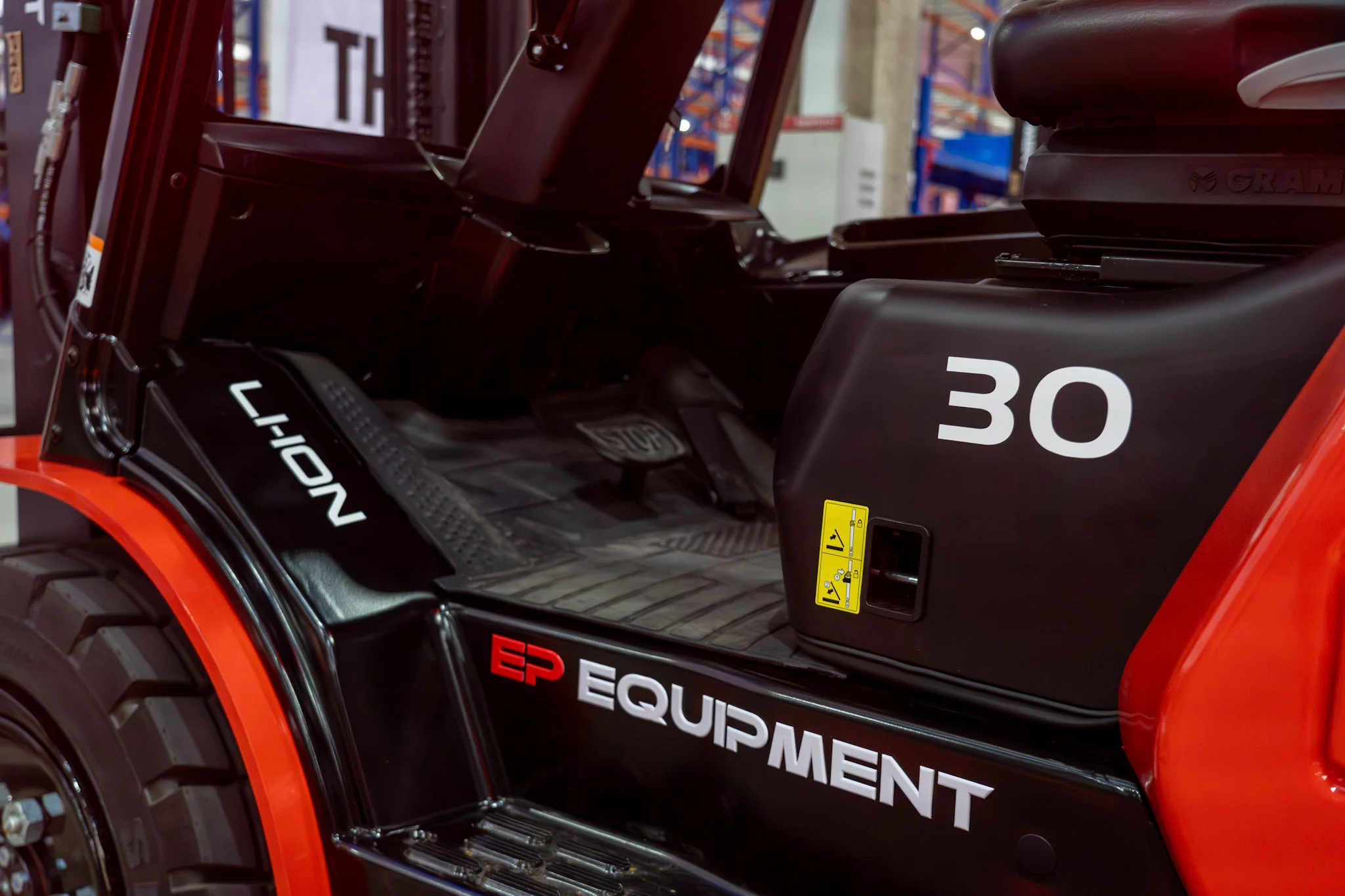

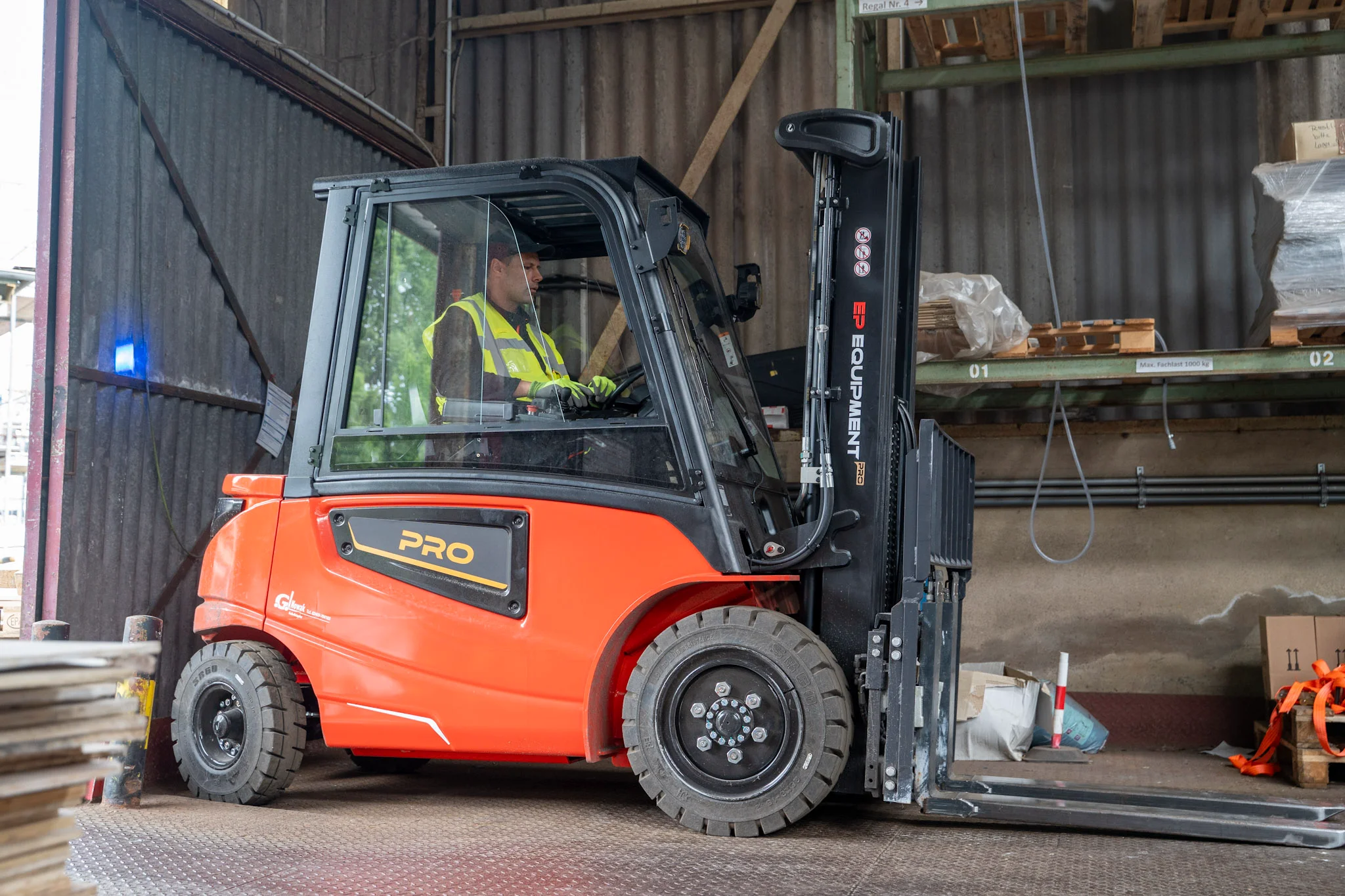

EFL25-PRO 4-Wheel Li-ion Counterbalance Forklift (2.5 t)

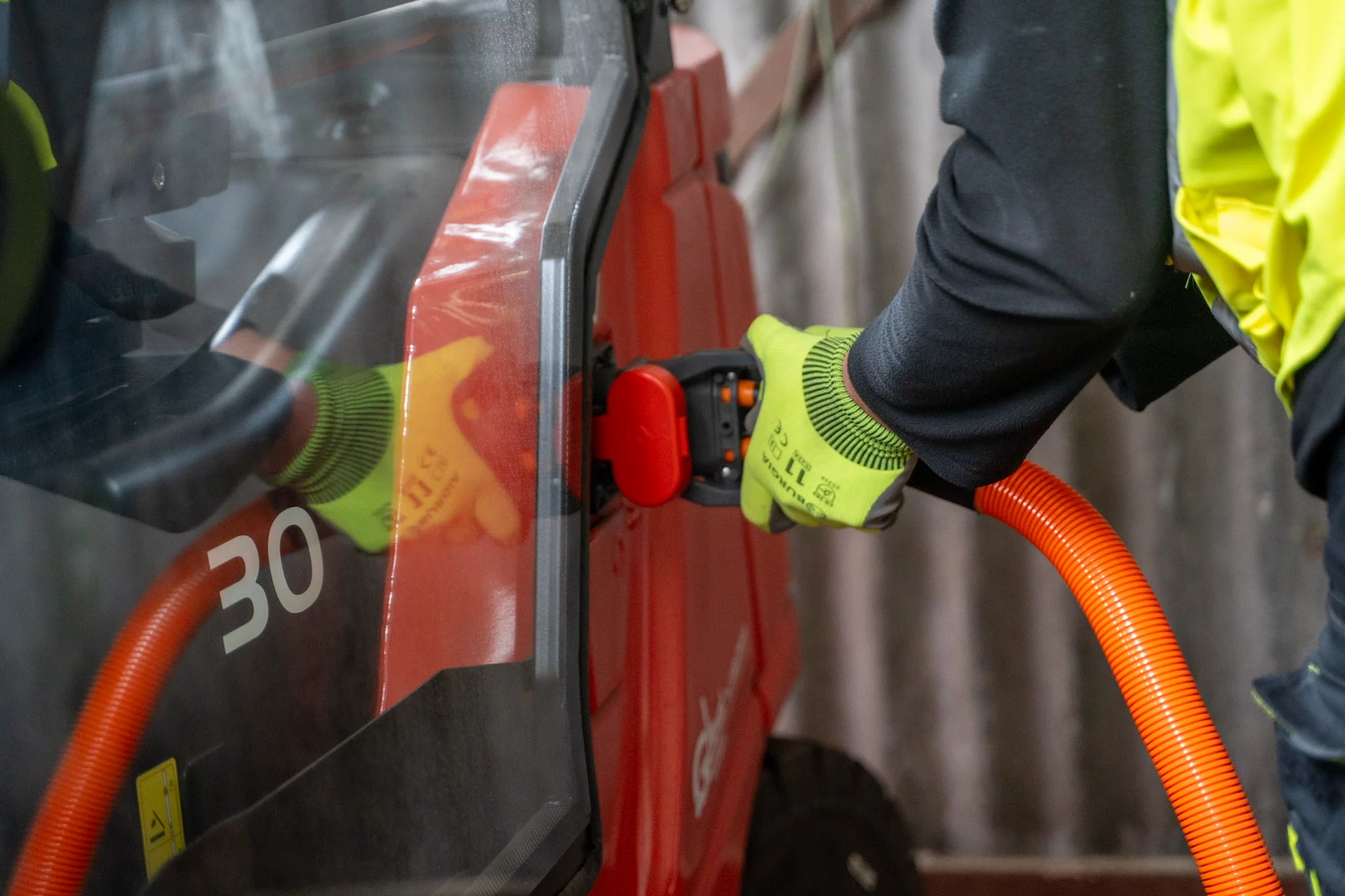

4-wheel Li-ion counterbalance forklift with 2.5 t capacity, 19/20 km/h travel speed and opportunity charging โ no acid fumes, no battery changing, one shift per charge.
Capacity
2500 kg
Drive
Electric
Max Lift Height
6000 mm
Travel Speed
19/20 km/h
Gradeability
22/28 %
Service Weight
4450 kg
Battery
80V280AHV/Ah
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Model designation
EFL25-PRO
Drive
Electric
Operator type
Seated
Rated capacity
2500 kg
Load centre distance
500 mm
Load distance, centre of drive axle to fork
495 mm
Service weight
4450 kg

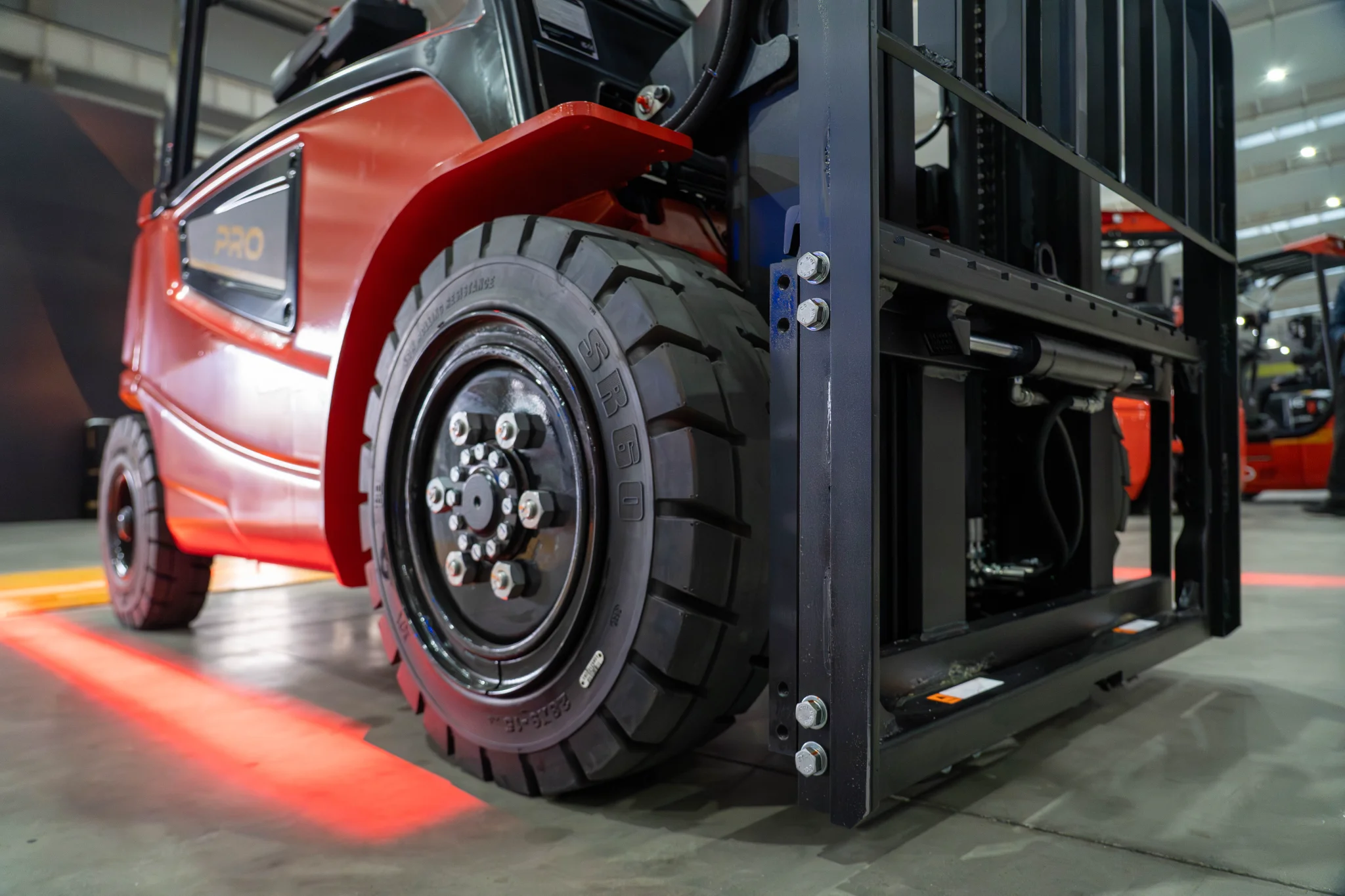

Tyres
Pneumatic
Wheels, number front/rear (x=drive wheels)
2x/ 2
Drive motor rating S2 60 min
15 kW
Type of drive unit
AC
Sound pressure level at the driver's seat
๏นค70 dB(A)
Dimensions
Wheelbase
1730 mm
Axle loading, laden front/rear
6065/885 kg
Axle loading, unladen front/rear
2127/2323 kg
Tyre size, front
7.00-12-12PRmm
Tyre size, rear
6.00-9-10PRmm
Tread width, front
975 mm
Tread width, rear
945 mm
Tilt of mast/fork carriage forward/backward
6/ 6 ยฐ
Height, mast lowered
2090 mm
Free lift
195 mm
Lift
3000 mm
Height, mast extended
4060 mm
Height of overhead guard (cabin)
2170 mm
Seat height relating to SIP/stand height
1138 mm
Coupling height
510 mm
Overall length
3610 mm
Overall width
1154 mm
Fork dimensions
40ร122ร1070 mm
Fork carriage ISO 2328, class/type A, B
2A
Fork carriage width
1040 mm
Ground clearance, laden, below mast
115 mm
Ground clearance, centre of wheelbase
165 mm
Aisle width for pallets 1000ร1200 crossways
3955 mm
Aisle width for pallets 800 ร 1200 lengthways
4155 mm
Turning radius
2260 mm
Lift speed, laden/unladen
0.55/0.58 m/s
Lift motor rating at S3 15%
30 kW
Max lift height
6000 mm
Performance
Travel speed, laden/unladen
19/20 km/h
Lowering speed, laden/unladen
0.54/0.56 m/s
Drawbar pull, laden/unladen
5964
Max. drawbar pull, laden/unladen
18735N
Max. gradeability, laden/unladen
22/28 %
Service brake
Hydraulic
Parking brake
Electromagnetic
Drive & Battery
Battery voltage/nominal capacity
80V280AHV/Ah
Battery weight
184 kg
Energy consumption according to DIN EN 16796
10.22kWh/h
Turnover output according to VDI 2198
160
Turnover efficiency according to VDI 2198
17.7
Operation & Environment
Operating pressure for attachments
180bar
Oil volume for attachments
35โ/min
Steering design
Hydraulic
Length to face of forks
2540 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
