EPT20-EZ2000 kg

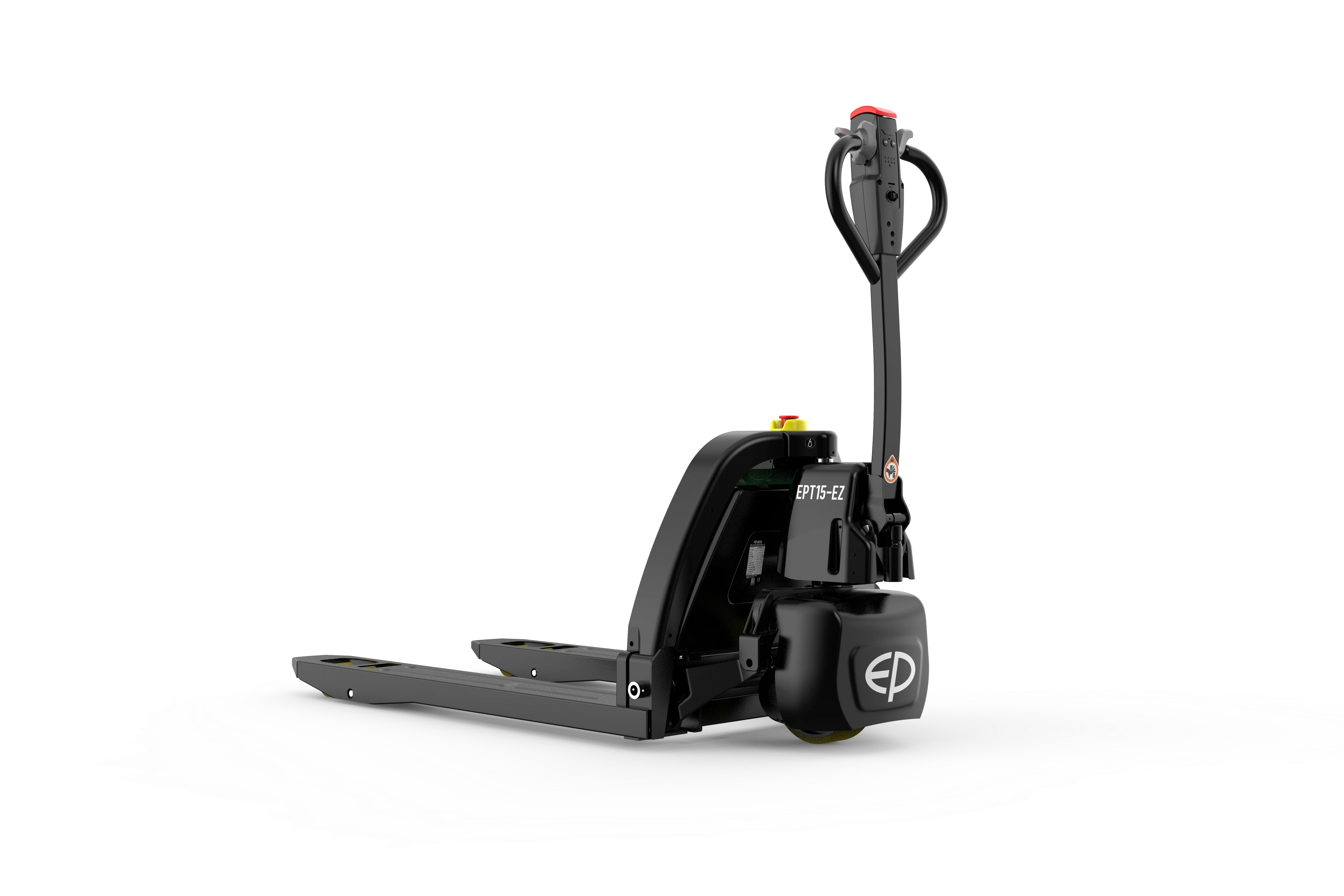

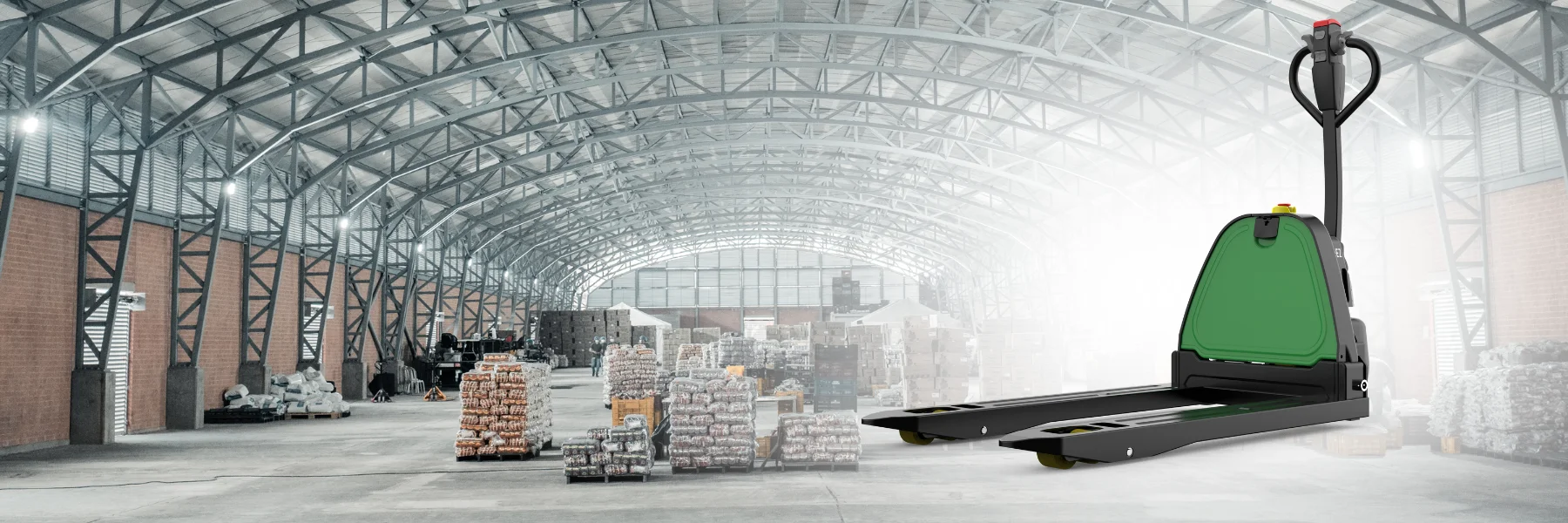

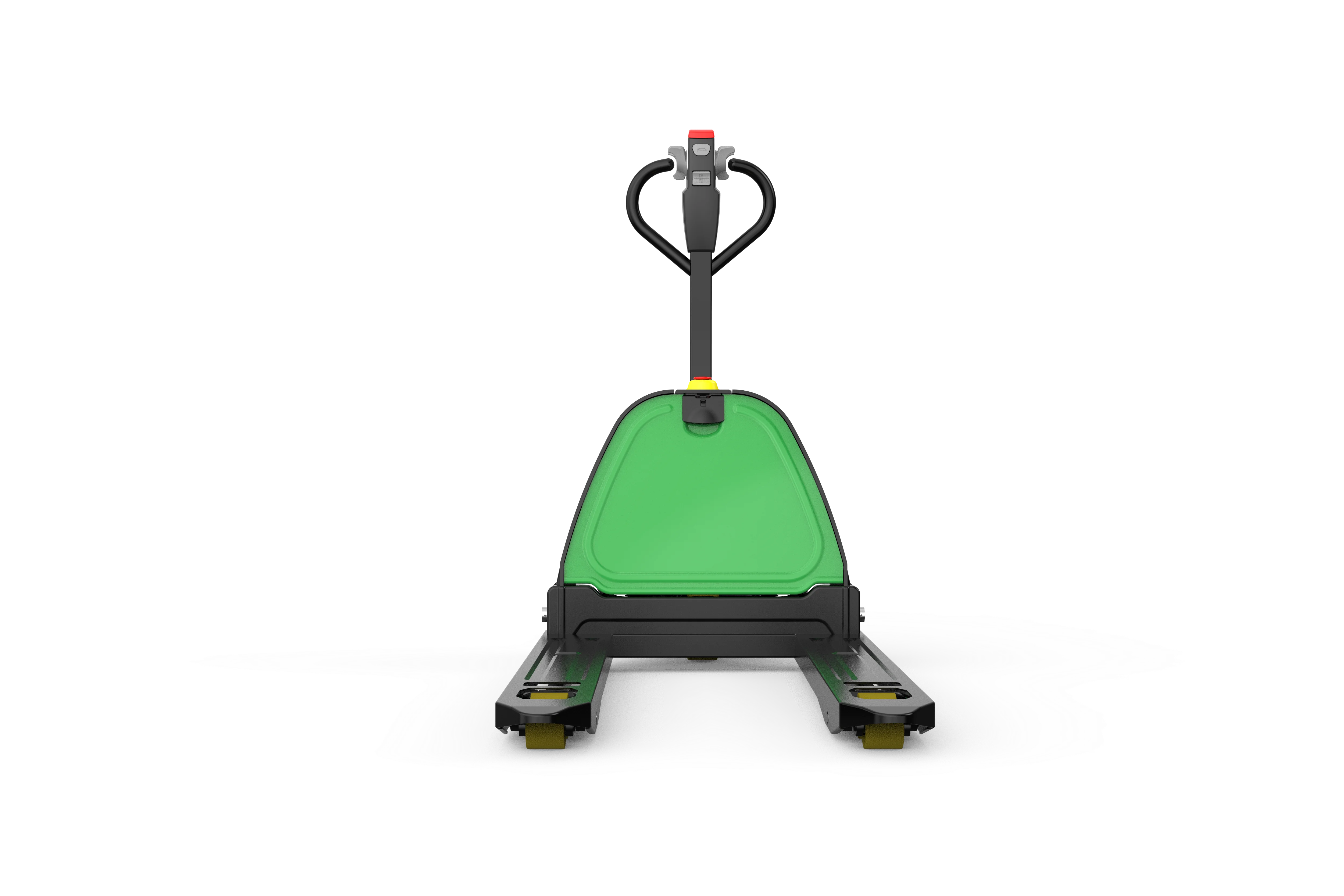

EPT20-EZ Compact Electric Pallet Truck (2.0 t)
Entry-level electric pallet truck with 2.0 t capacity and a slim 695 mm chassis — foldable tiller, 48 V Li-ion battery and a 1,390 mm turning radius for container work.
Capacity
2000 kg
Drive
Electric
Max Lift Height
105 mm
Travel Speed
4/4.5 km/h
Gradeability
8/16 %
Service Weight
130 kg
Battery
Li-Ion (48 V)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
EPT20-EZ
Drive
Electric
Operator type
Pedestrian
Rated capacity
2000 kg
Load centre distance
600 mm
Load distance, centre of drive axle to fork
950 mm
Service weight
130 kg
Tyres
Polyurethane
Wheels, number front/rear (x=drive wheels)
1x2/4（1x2/2）
Drive motor rating S2 60 min
0.7 kW
Type of drive unit
DC
Sound pressure level at the driver's seat
74 dB(A)
Dimensions
Wheelbase
1210 mm
Axle loading, laden front/rear
678/1452 kg
Axle loading, unladen front/rear
98/32 kg
Tyre size, front
Ф150×65mm
Tyre size, rear
Ф80x60(Ф74x88)mm
Additional wheels (castor wheels)
Ф74x30(option)mm
Tread width, front
535 mm
Tread width, rear
535/410 mm
Lift
["105"] mm
Height drawbar in driving position min./max.
750/1190 mm
Height, lowered
82 mm
Width of loading surface
695/590
Overall length
1580 mm
Overall width
695/590 mm
Fork dimensions
50/150/1150 mm
Ground clearance, centre of wheelbase
25 mm
Aisle width for pallets 1000×1200 crossways
2190 mm
Aisle width for pallets 800 × 1200 lengthways
2055 mm
Turning radius
1390 mm
Lift speed, laden/unladen
0.017/0.023 m/s
Lift motor rating at S3 15%
0.7 kW
Performance
Travel speed, laden/unladen
4/4.5 km/h
Lowering speed, laden/unladen
0.053/0.035 m/s
Max. gradeability, laden/unladen
8/16 %
Service brake
Electromagnetic
Drive & Battery
Battery voltage
48 V
Battery nominal capacity K5
10 Ah
Battery type
Li-Ion
Battery weight
5 kg
Charger output current
Charger output current A
Operation & Environment
Steering design
Mechanical
Length to face of forks
430 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
