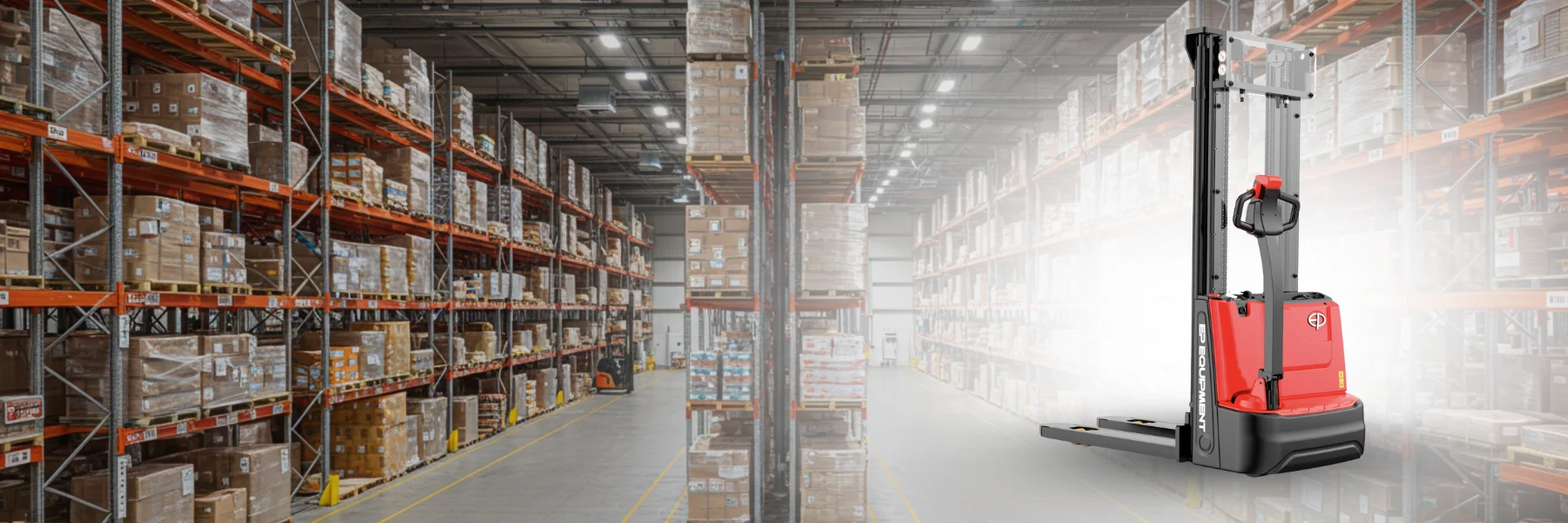

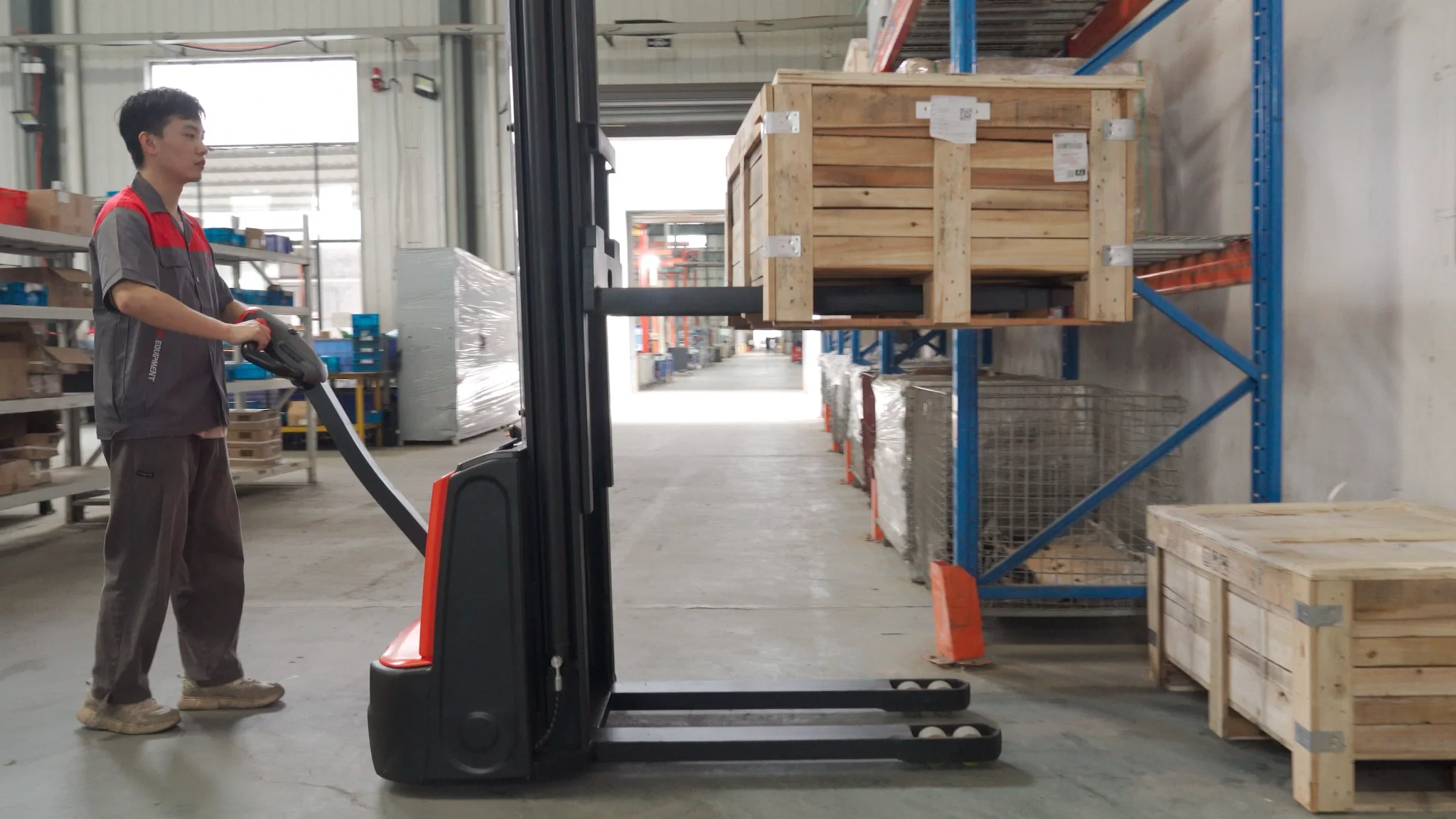

ESA121 Duplex Electric Pedestrian Stacker (1.2 t)
Pedestrian stacker with duplex mast lifting 1.2 t up to 4.1 m — 24 V AGM power, 1,480 mm turning radius and intuitive tiller control for narrow rack aisles.
Capacity
1200 kg
Drive
Electric
Max Lift Height
4113 mm
Travel Speed
4.0/4.5 km/h
Gradeability
3/10 %
Service Weight
700 kg
Battery
AGM (24 V)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
ESA121 Duplex
Drive
Electric
Operator type
Pedestrian
Rated capacity
1200 kg
Load centre distance
600 mm
Load distance, centre of drive axle to fork
808 mm
Service weight
700 kg
Tyres
Polyurethane
Wheels, number front/rear (x=drive wheels)
1x，1/4
Drive motor rating S2 60 min
0.65 kW
Type of drive unit
DC
Sound pressure level at the driver's seat
74 dB(A)
Dimensions
Wheelbase
1230 mm
Axle loading, laden front/rear
720/1180 kg
Axle loading, unladen front/rear
520/180 kg
Tyre size, front
Ø214×70mm
Tyre size, rear
Ø80×61mm
Additional wheels (castor wheels)
Ø130×55mm
Tread width, front
543 mm
Tread width, rear
400 mm

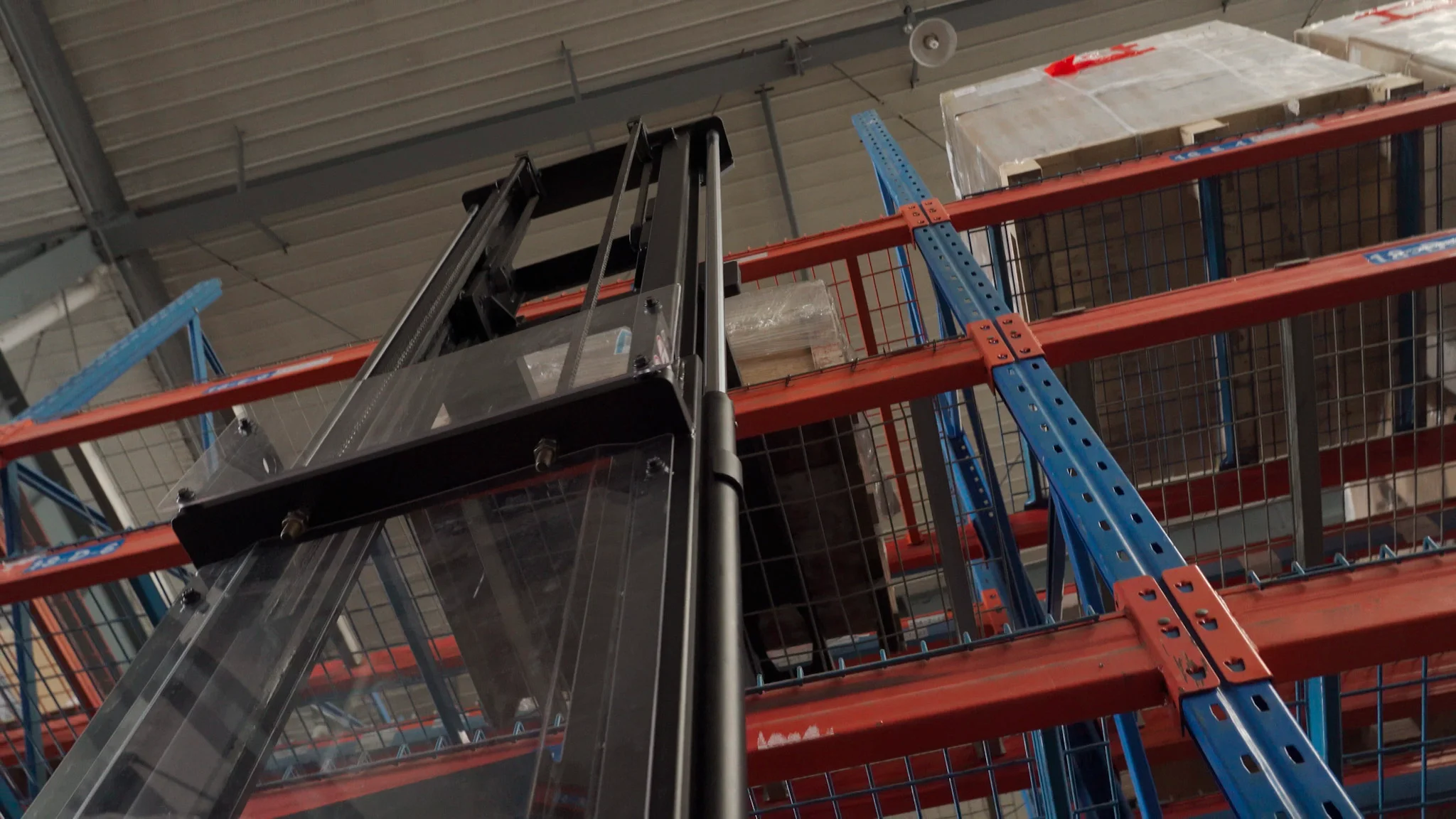

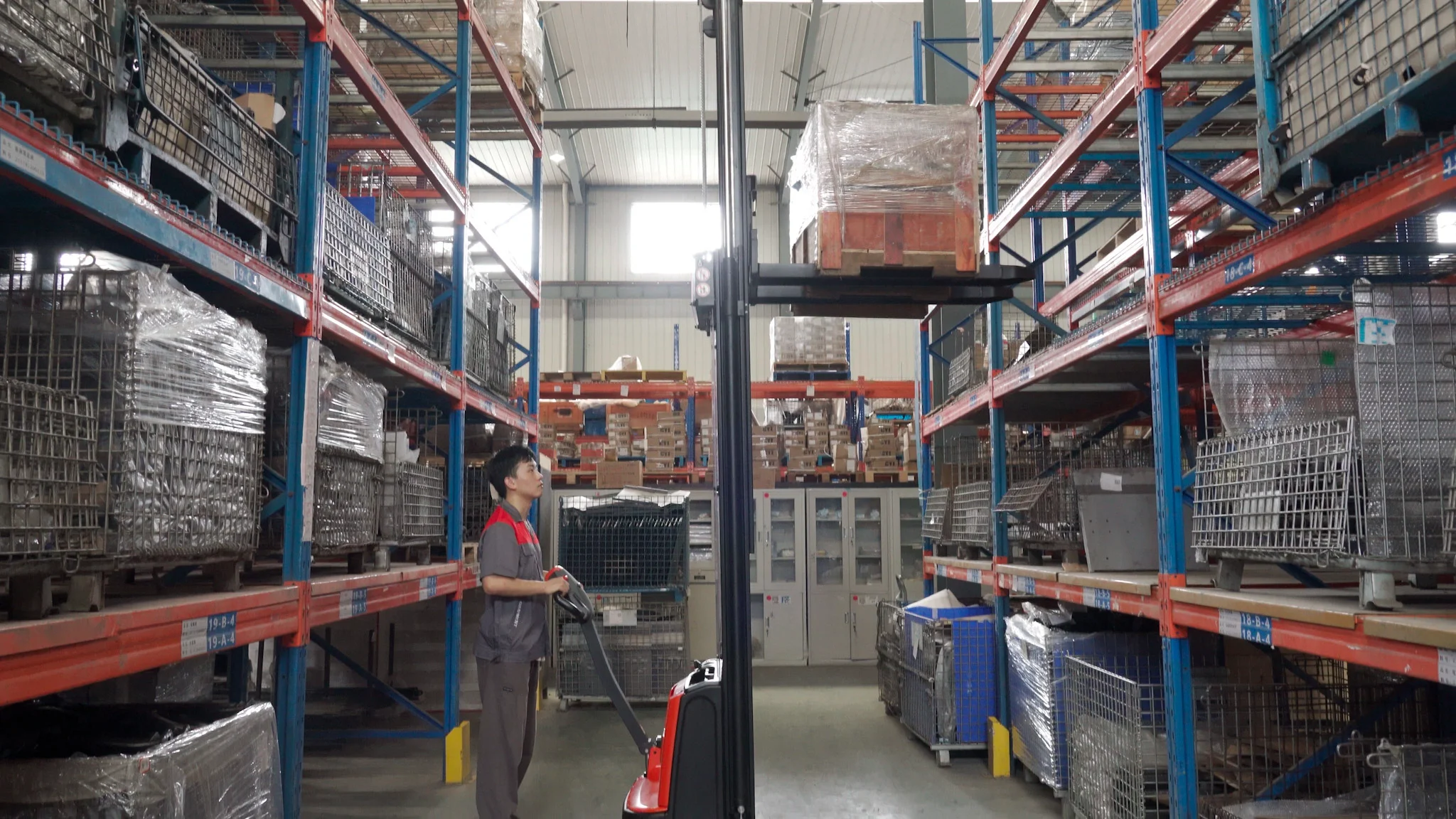

Max lift height
4113 mm
Height, mast lowered
1995 mm
Free lift
- mm
Lift
["2930"] mm
Height, mast extended
3460 mm
Height drawbar in driving position min./max.
760/1140 mm
Height of wheel arms
-mm
Height, lowered
90 mm
Overall length
1760 mm
Overall width
826 mm
Fork dimensions
60/170/1150 mm
Fork carriage width
680 mm
Ground clearance, laden, below mast
- mm
Ground clearance, centre of wheelbase
23 mm

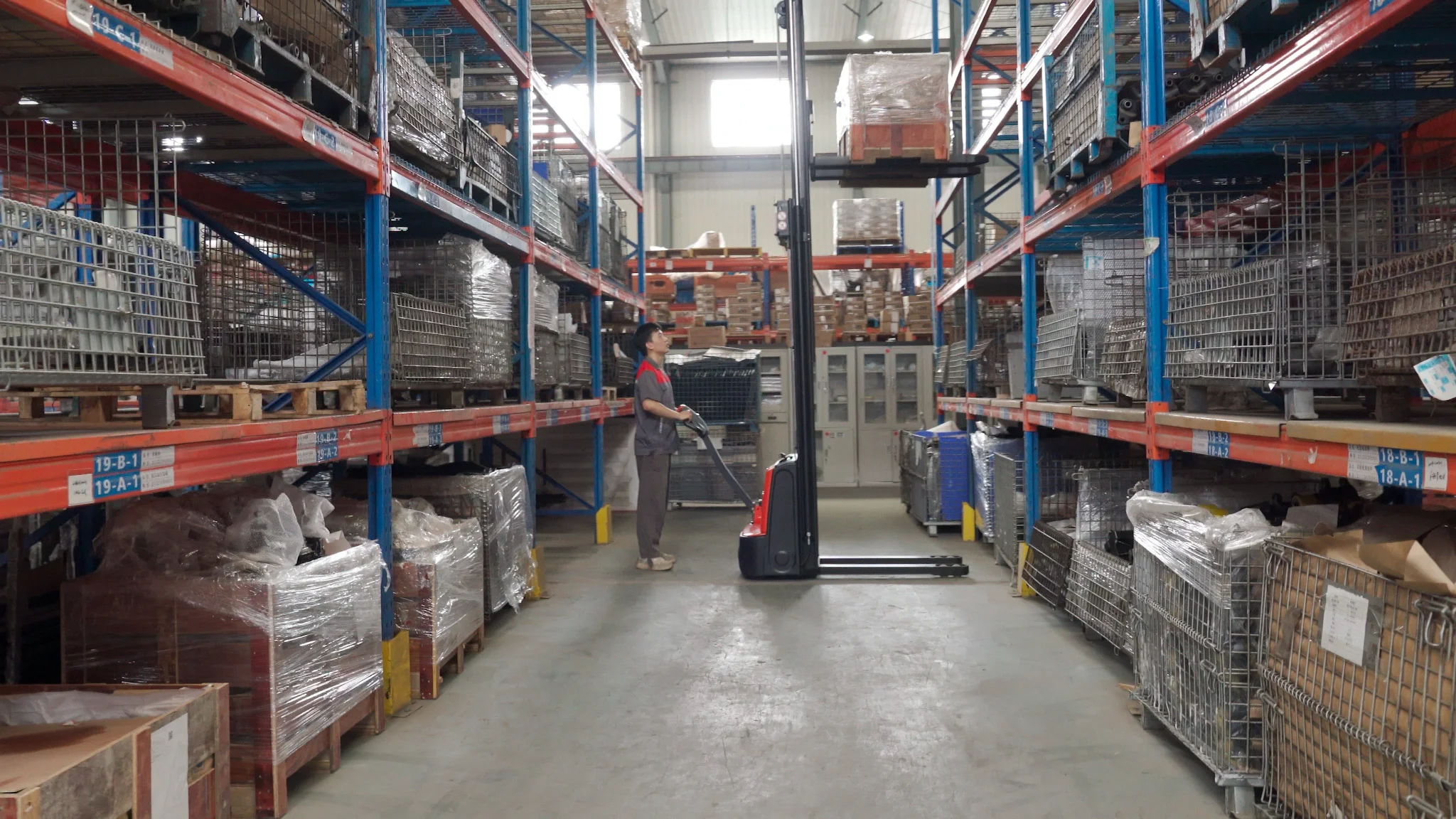

Aisle width for pallets 1000×1200 crossways
2310 mm
Aisle width for pallets 800 × 1200 lengthways
2240 mm
Turning radius
1480 mm
Lift speed, laden/unladen
0.15/0.24 m/s
Lift motor rating at S3 15%
3.0 kW
Performance
Travel speed, laden/unladen
4.0/4.5 km/h
Lowering speed, laden/unladen
0.21/0.20 m/s
Max. gradeability, laden/unladen
3/10 %
Service brake
Electromagnetic
Parking brake
Electromagnetic

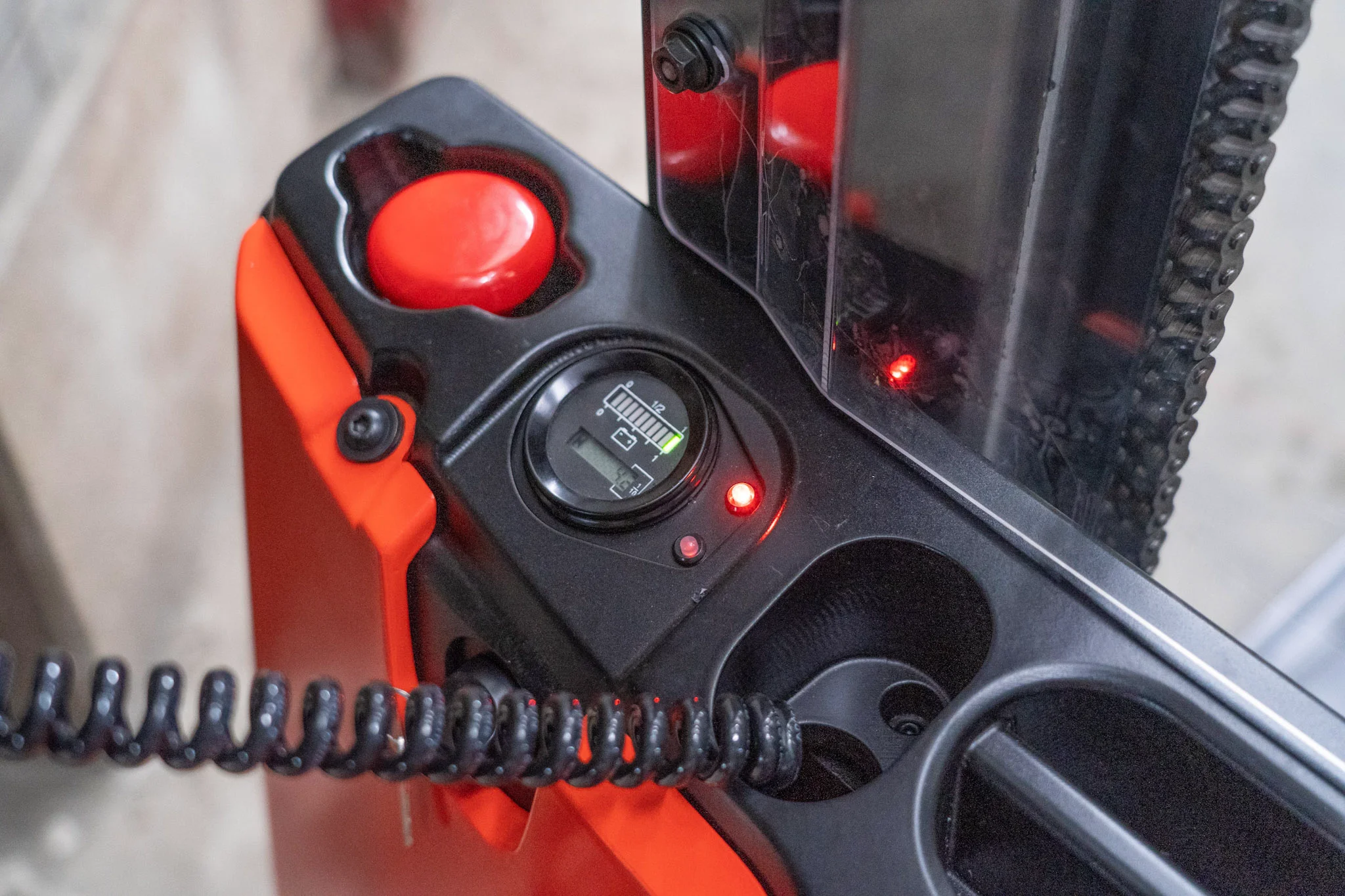

Drive & Battery
Battery voltage
24 V
Battery nominal capacity K5
105 Ah
Battery type
AGM
Battery weight
61 kg
Energy consumption according to DIN EN 16796
- kWh/h

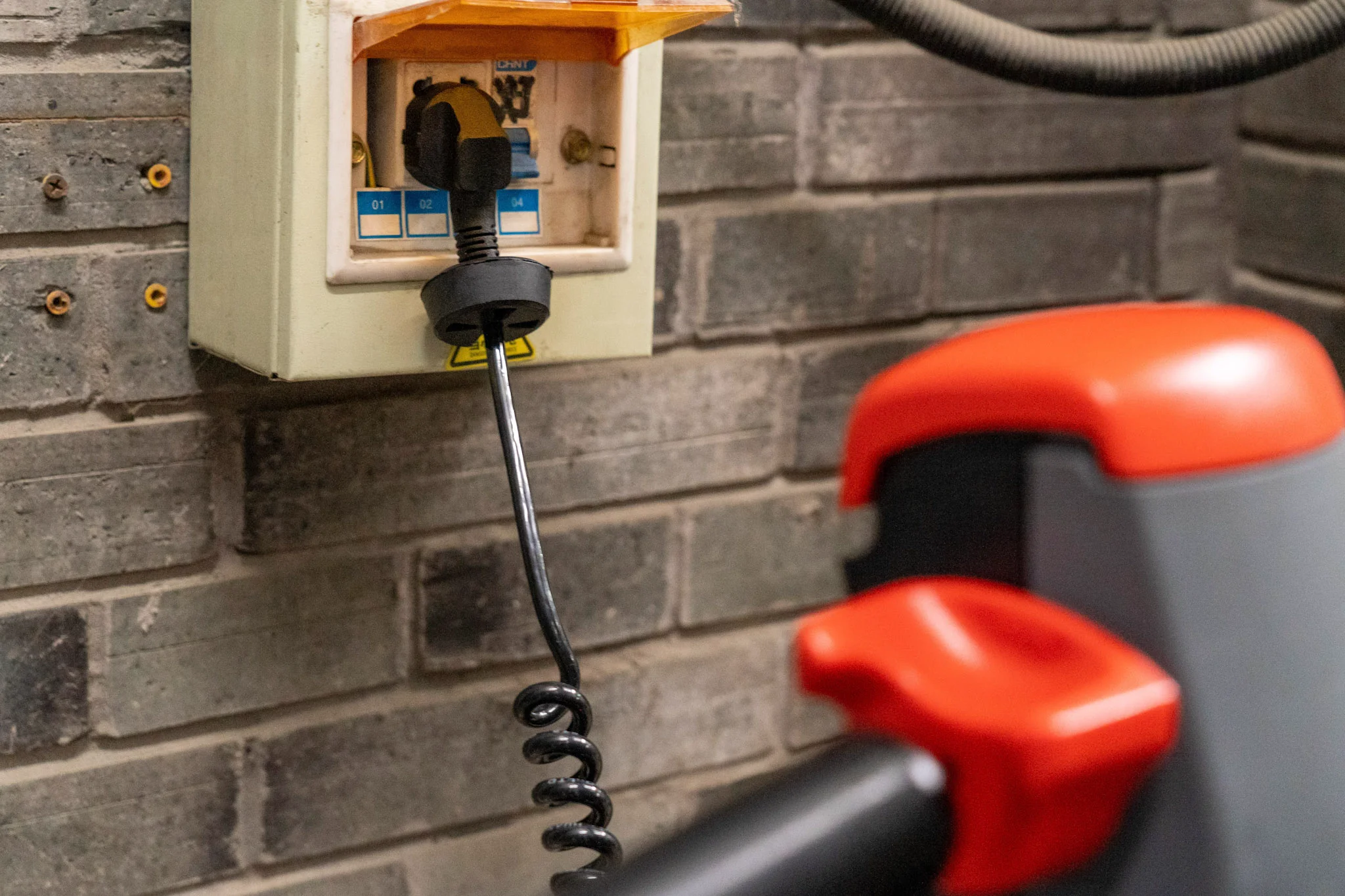

Charger output current
15 A
Operation & Environment
Steering design
Mechanical
Length to face of forks
610 mm
