JX1136/227/137 kg

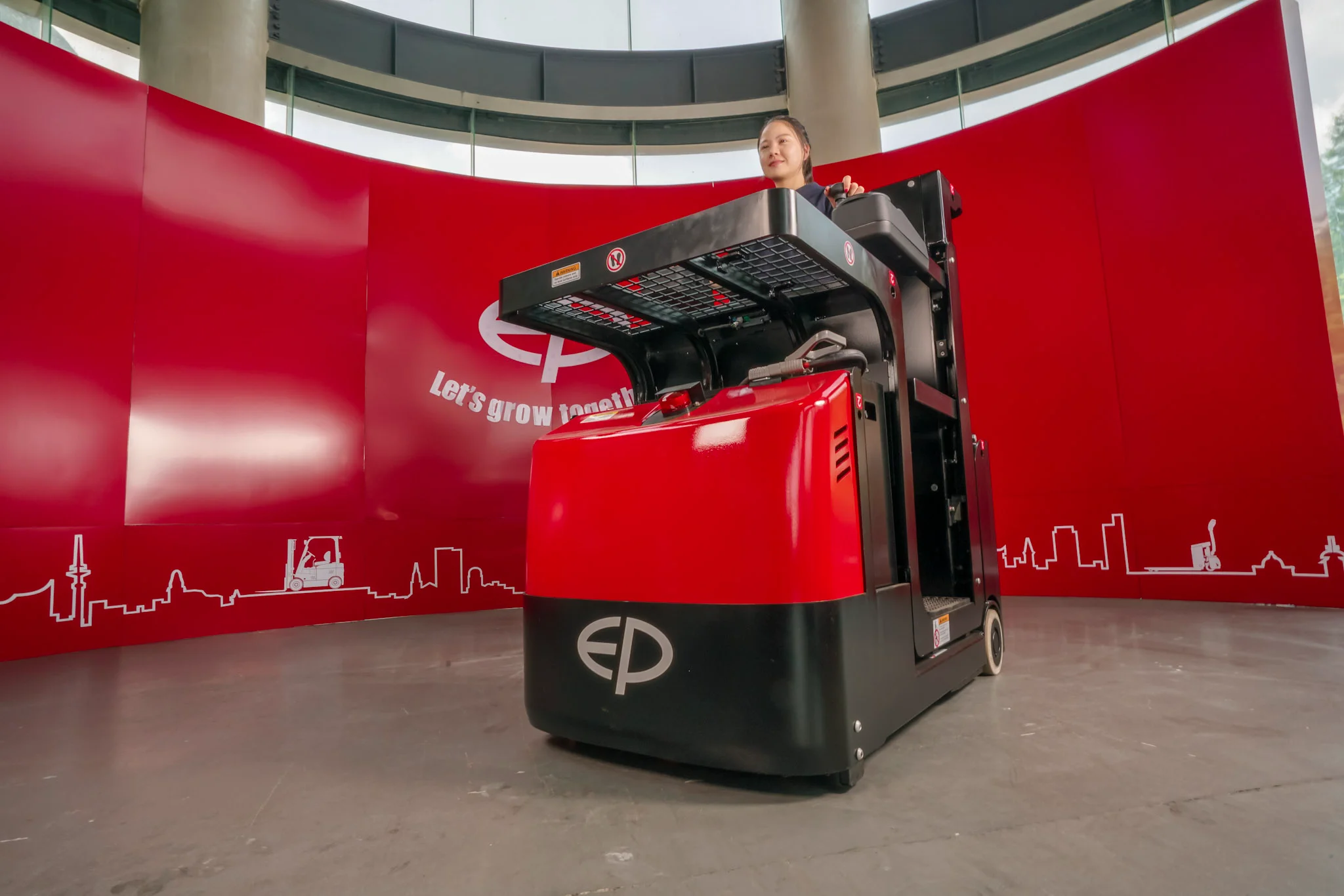

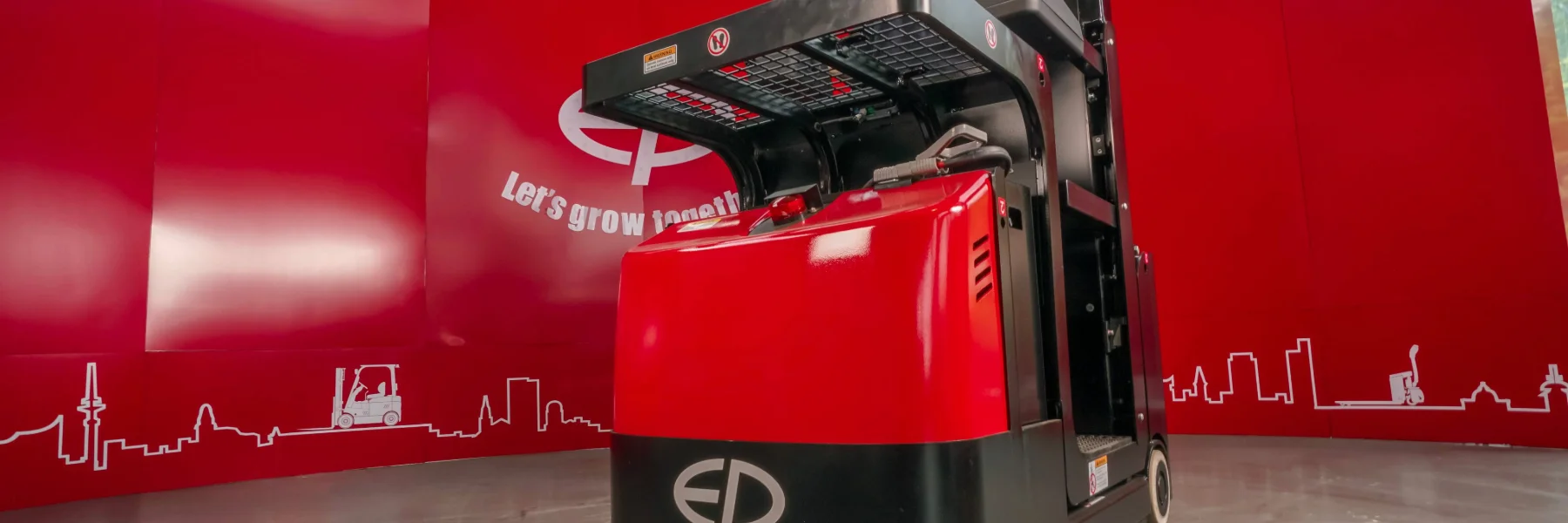

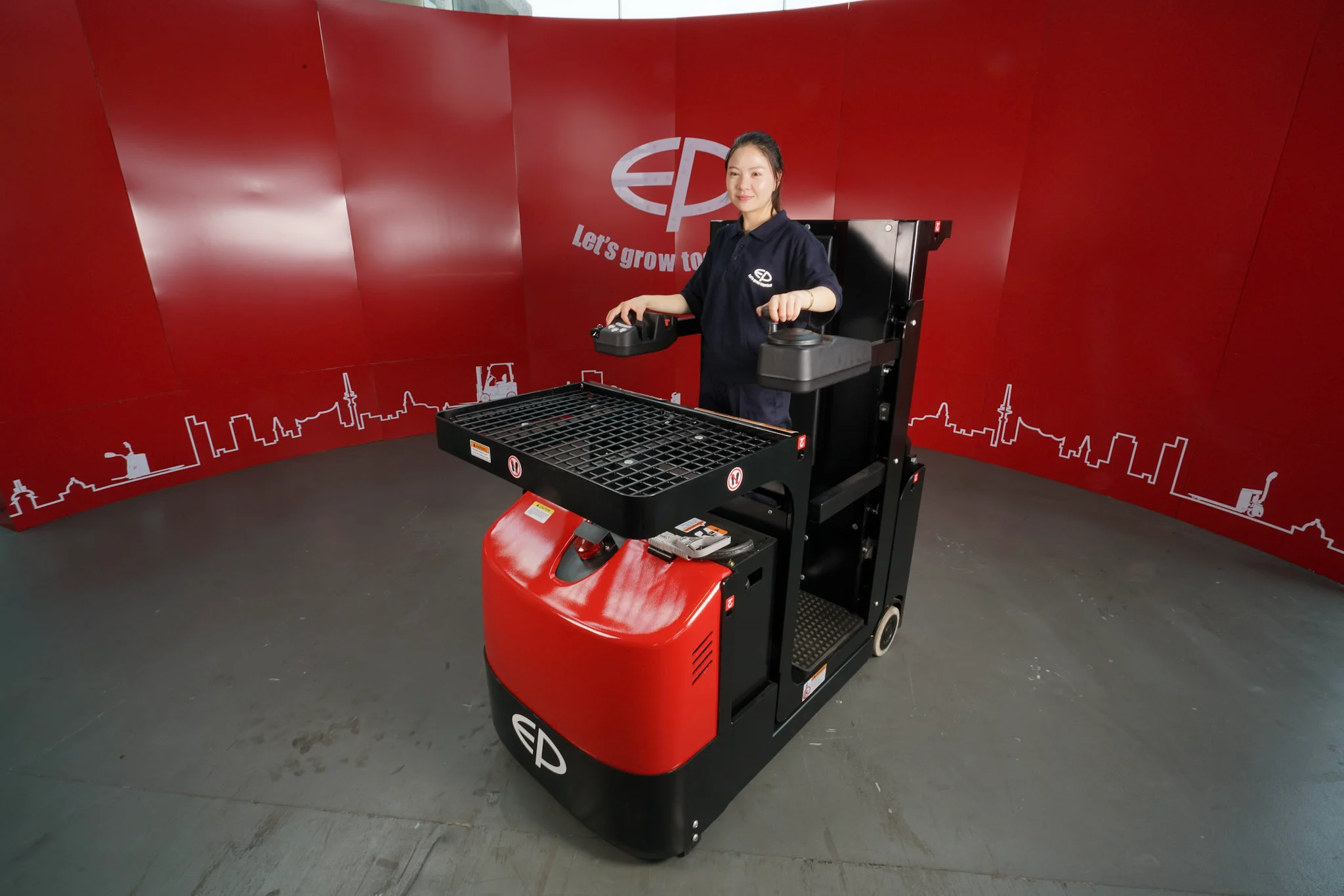

JX1 Medium-Level Order Picker (0.5 t, up to 4.9 m)

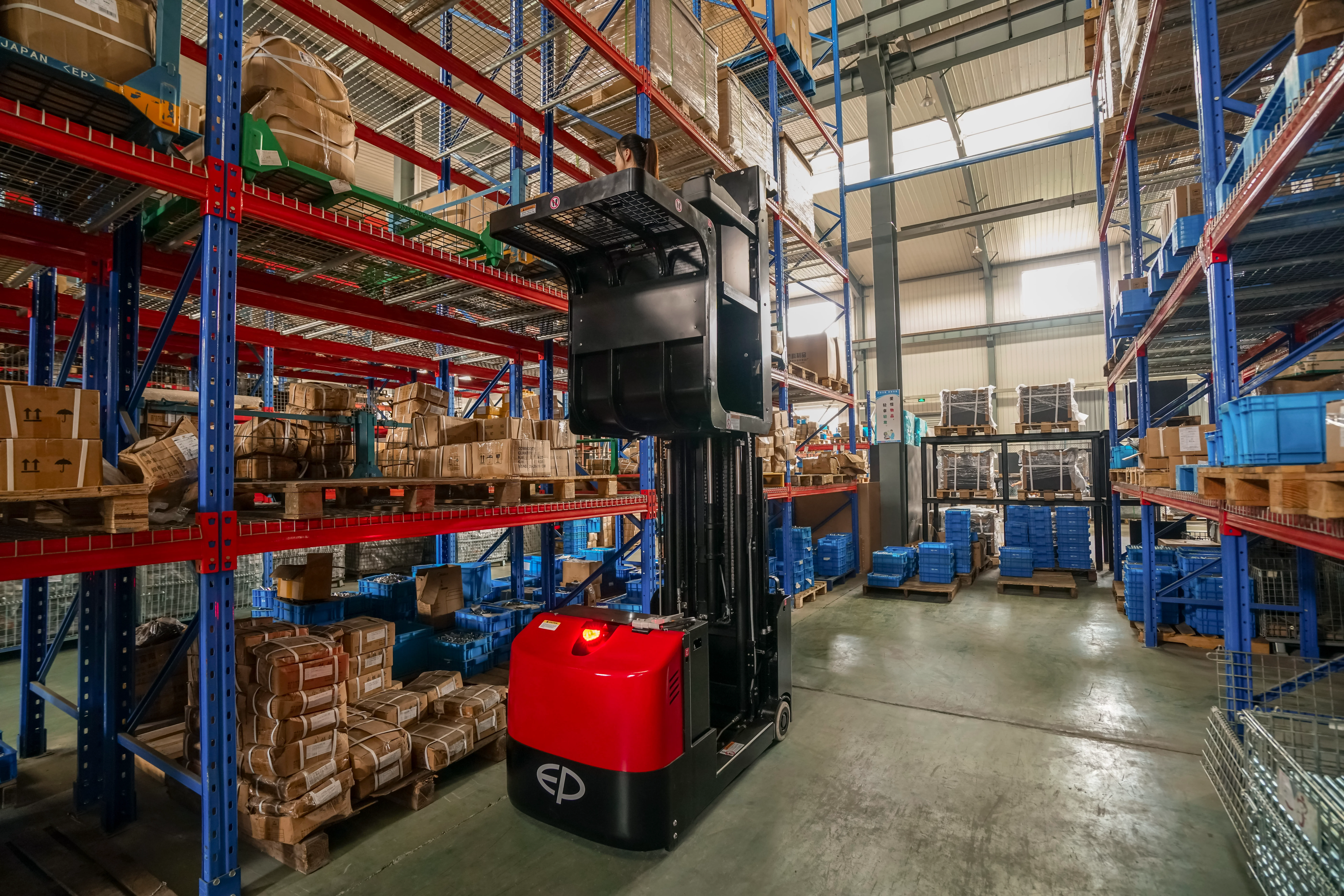

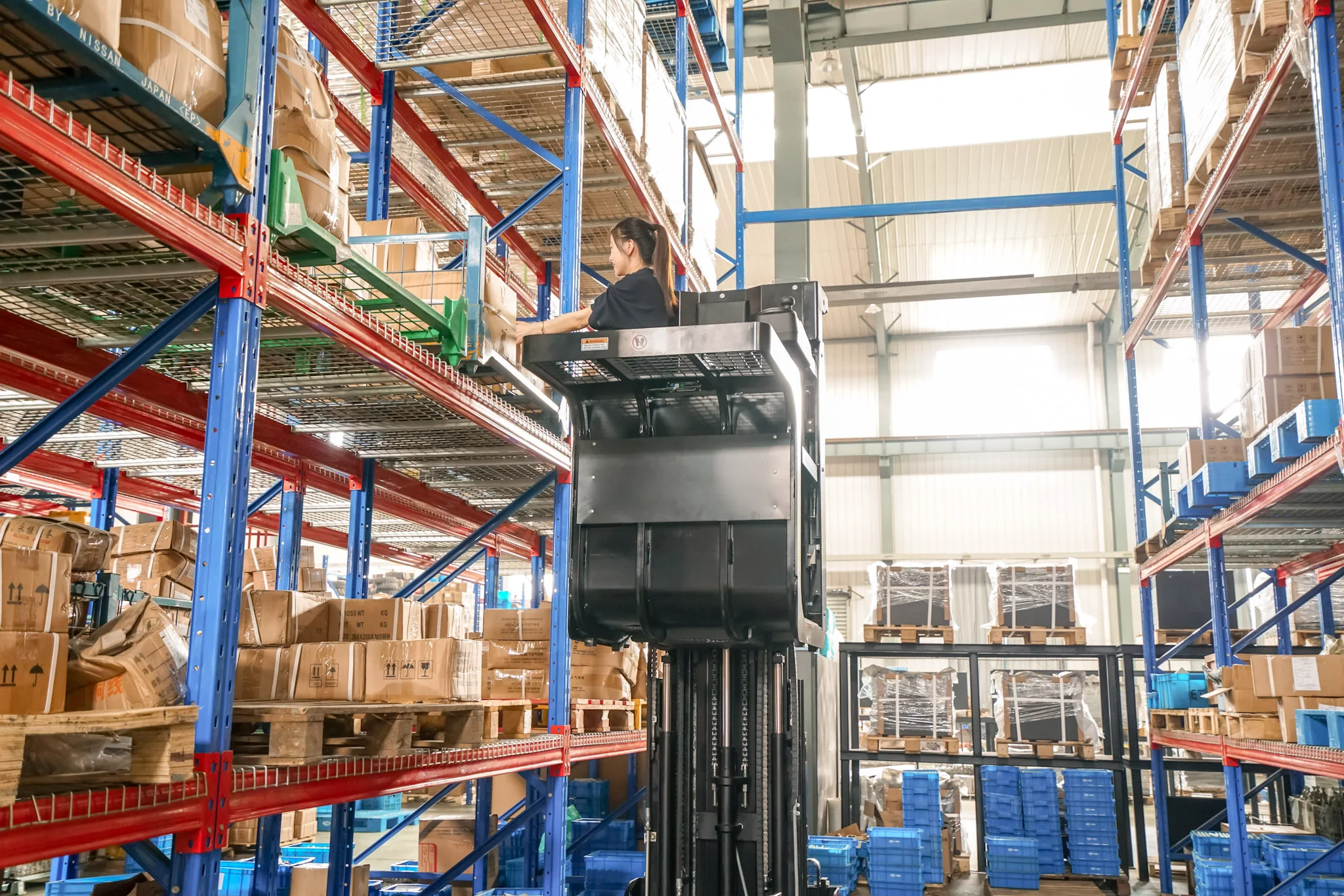

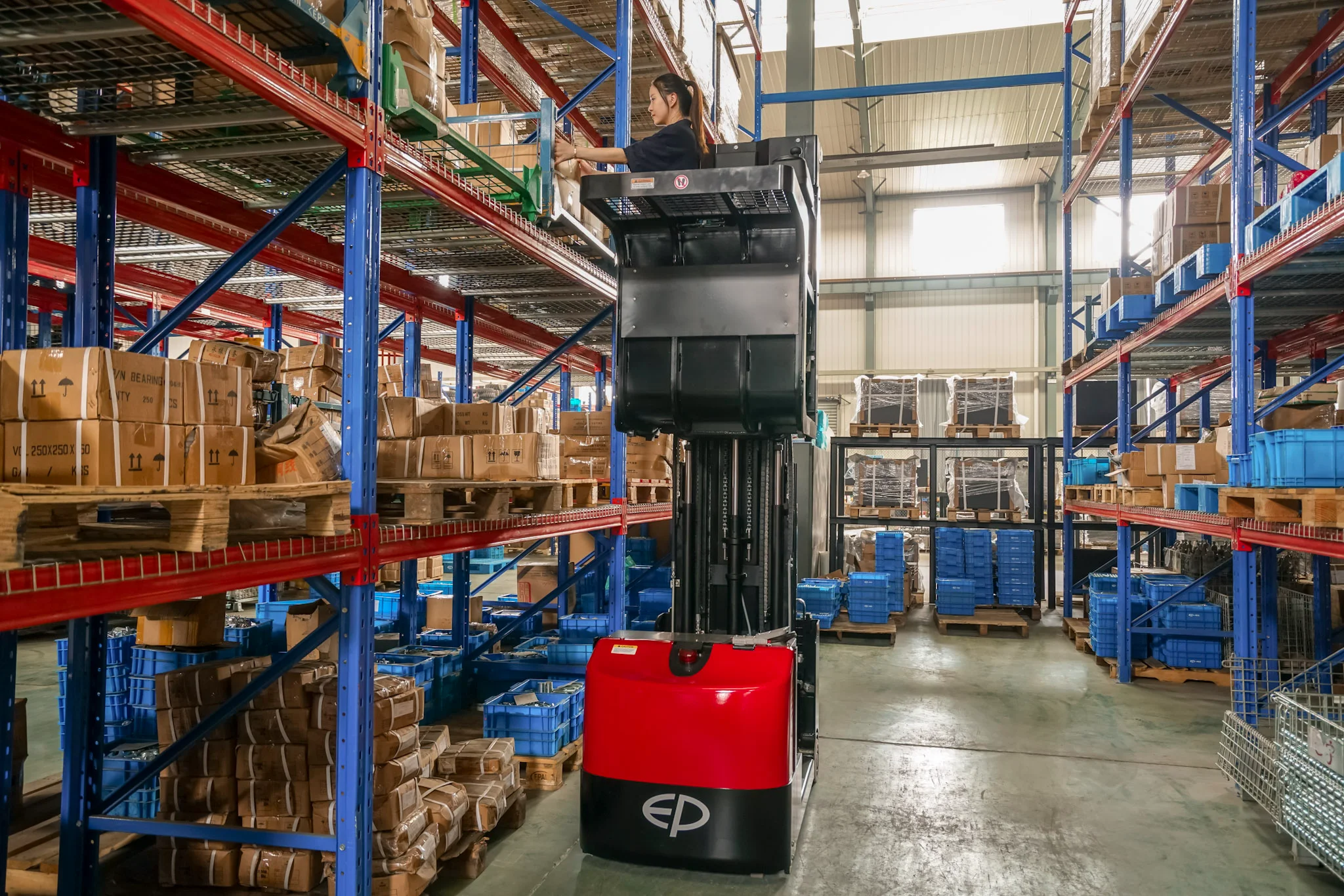

Medium-level order picker lifting the operator to 3.2–4.9 m — 0.5 t payload with AC drive, electronic steering and a compact 1,385 mm turning radius.
Capacity
136/227/137 kg
Drive
Electric
Max Lift Height
4030|4930|5710 mm
Travel Speed
5.5/5.5 km/h
Service Weight
1242|1340|1646 kg
Battery
Lead Acid (24 V)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
JX1
Drive
Electric
Operator type
Order-picker
Rated capacity
136/227/137 kg
Service weight
1242|1340|1646 kg
Tyres
Polyurethane/Solidrubber
Wheels, number front/rear (x=drive wheels)
1x，2/2
Drive motor rating S2 60 min
1.6 kW
Type of drive unit
AC
Sound pressure level at the driver's seat
74 dB(A)
Dimensions
Wheelbase
1150|1150|1256 mm
Axle loading, laden front/rear
644/1096|740/1100|837/1309 kg
Axle loading, unladen front/rear
475/767|520/820|670/1036 kg
Tyre size, front
φ230*75mm
Tyre size, rear
φ204*76mm
Additional wheels (castor wheels)
φ74*48mm
Tread width, front
555|555|615 mm
Tread width, rear
740|740|784 mm
Height, mast lowered
1510|2080|2090 mm
Lift
["4030|4930|5710"] mm
Height, mast extended
4540|5970|6750 mm
Height of overhead guard (cabin)
1590|2120|2120 mm
Seat height relating to SIP/stand height
250 mm
Stand height, elevated
3200|4100|4880mm
Overall length
1500|1500|1610 mm
Overall width
823|800|876 mm
Ground clearance, centre of wheelbase
50 mm
Turning radius
1385|1385|1450 mm
Lift speed, laden/unladen
0.17/0.21 m/s
Lift motor rating at S3 15%
2.2 kW
Performance
Travel speed, laden/unladen
5.5/5.5 km/h
Lowering speed, laden/unladen
0.35/0.26 m/s
Service brake
Electromagnetic
Drive & Battery
Battery voltage/nominal capacity
24/224V/Ah
Battery voltage
24 V
Battery nominal capacity K5
224 Ah
Battery type
Lead Acid
Battery weight
163 kg
Charger output current
25 A
Operation & Environment
Steering design
Electronic
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
