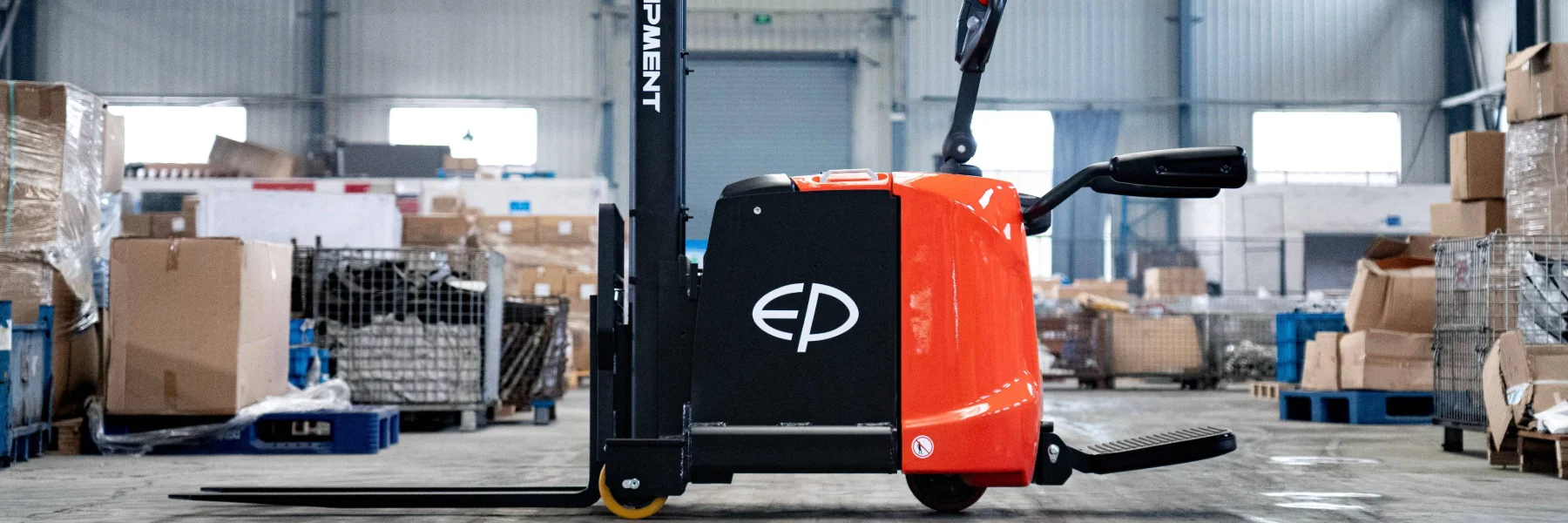

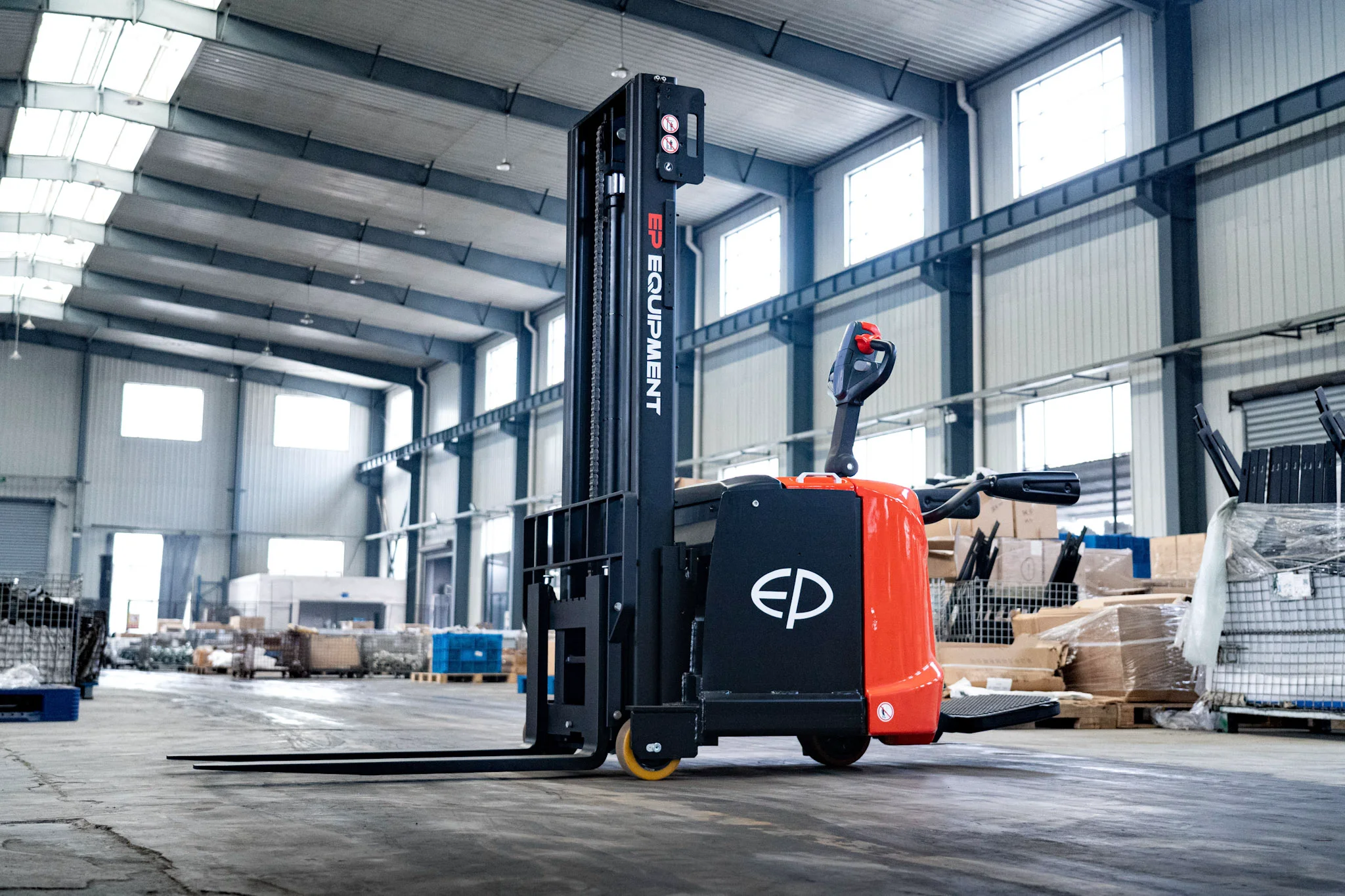

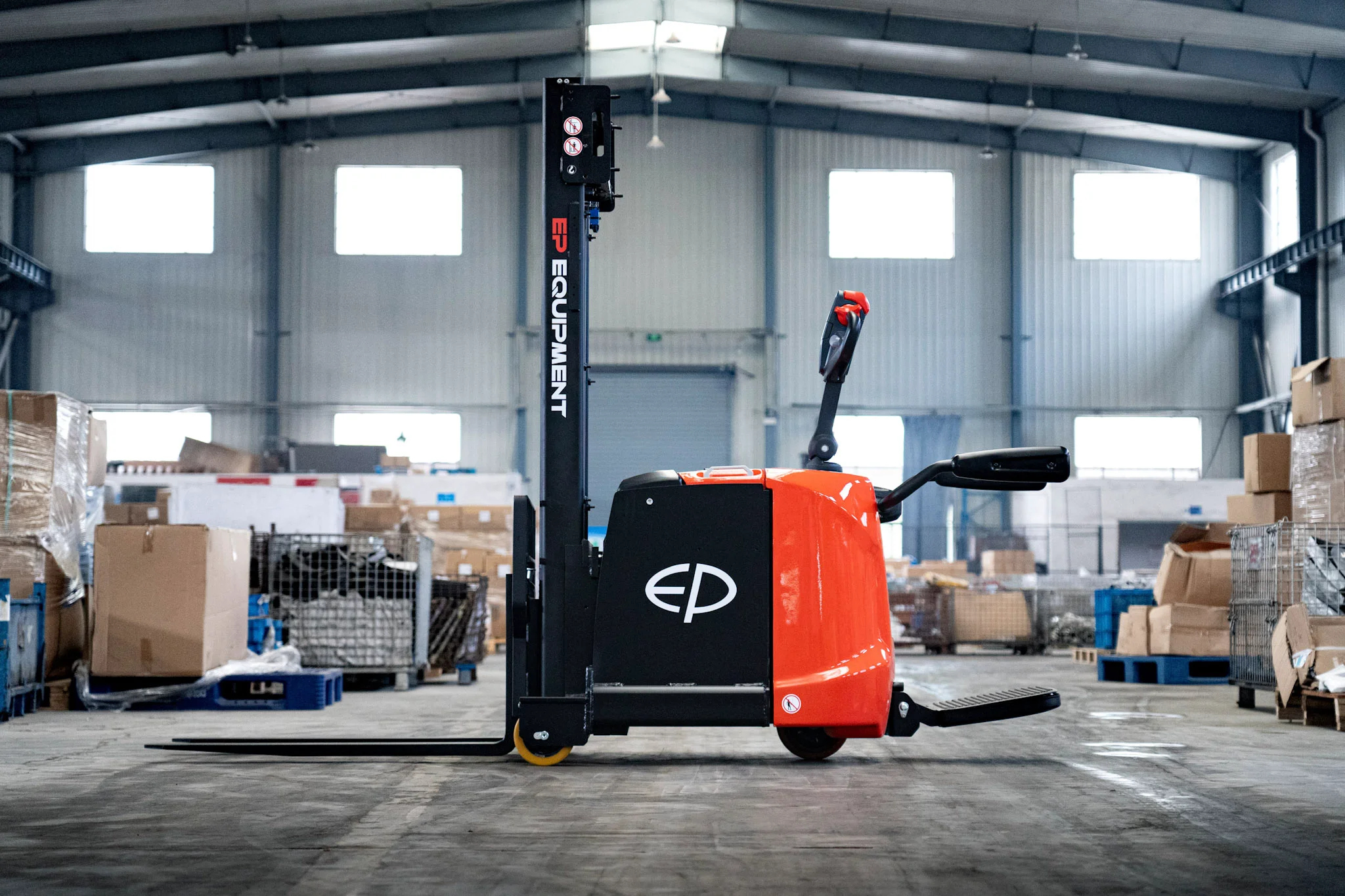

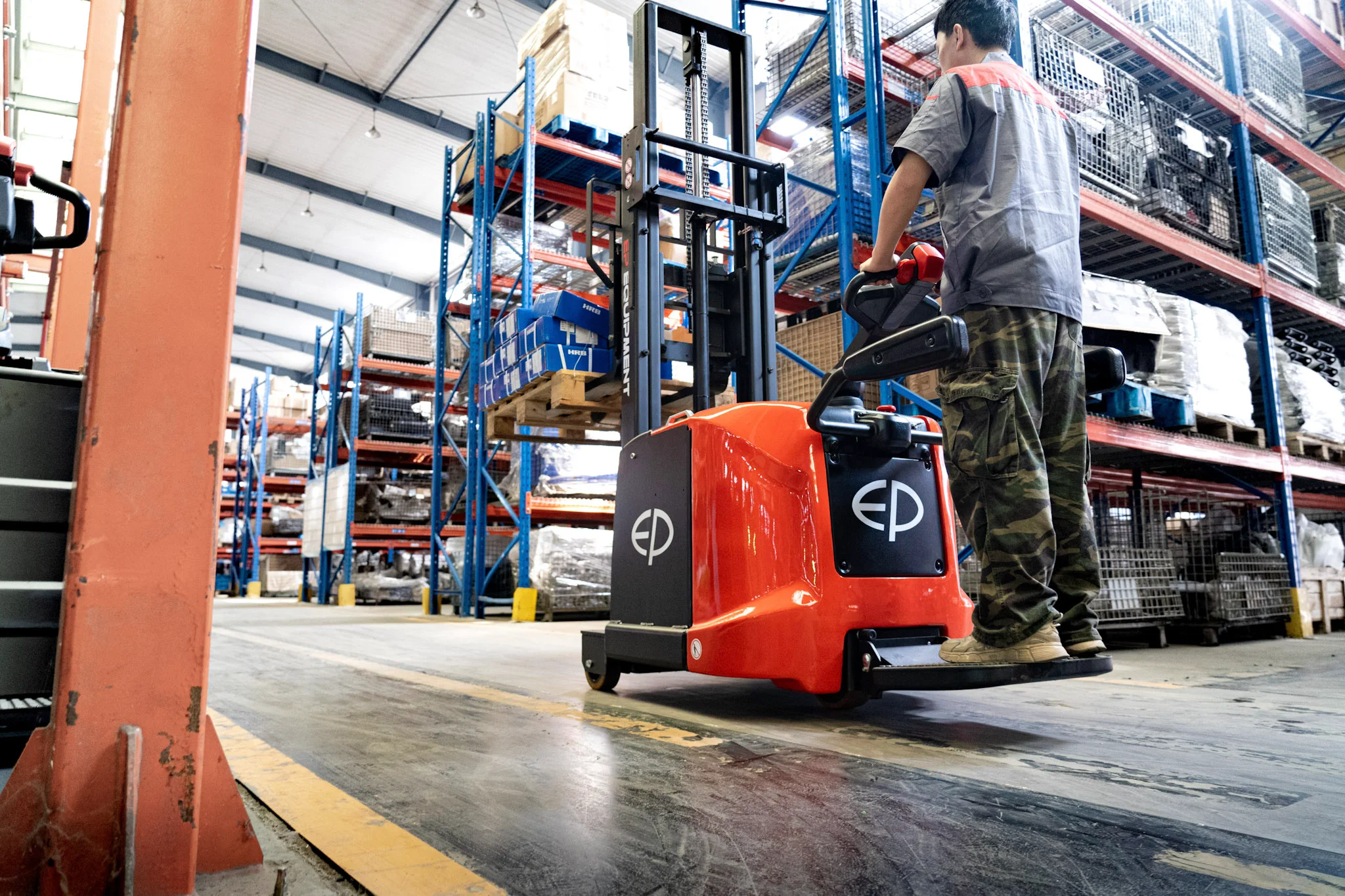

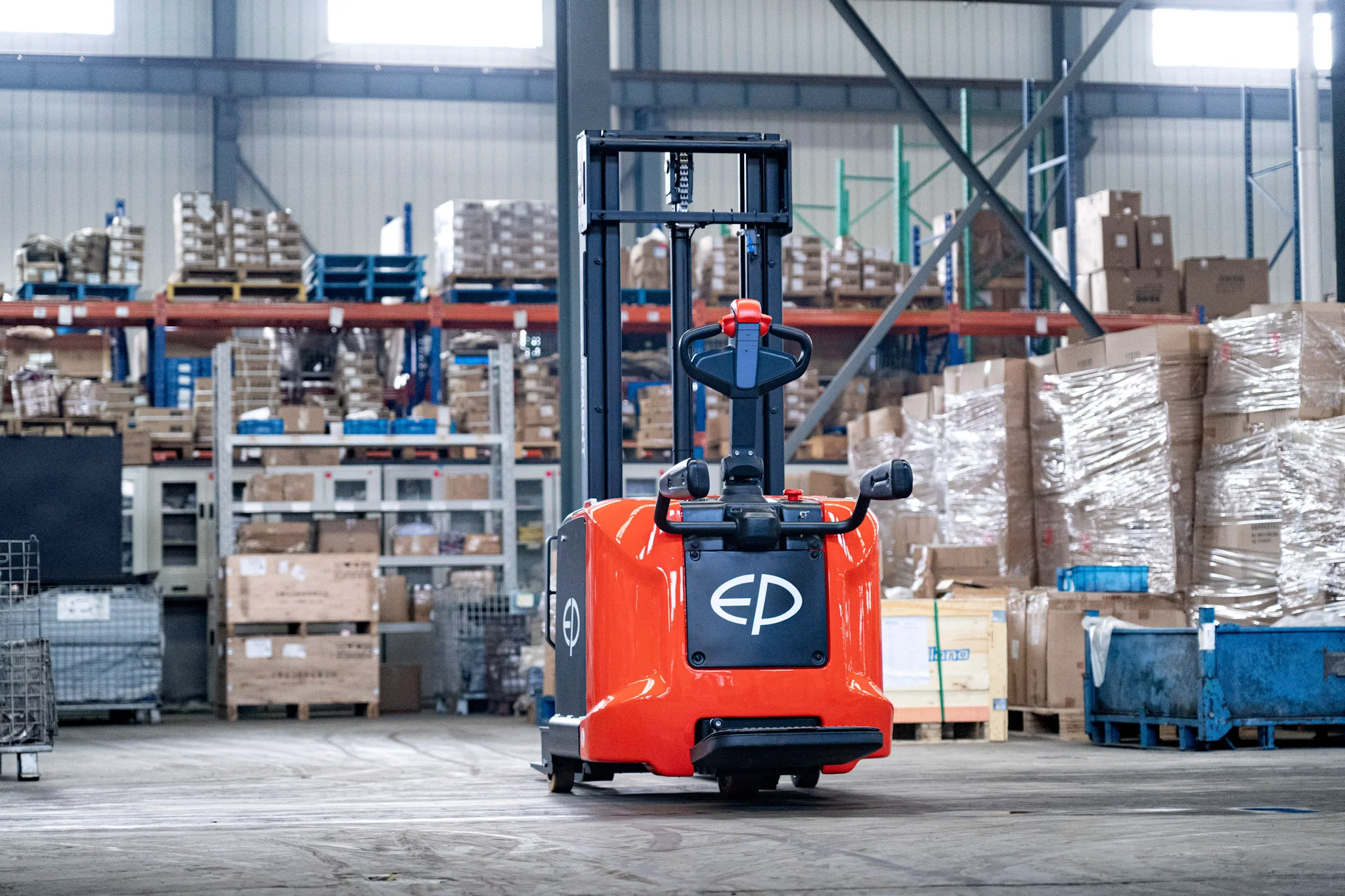

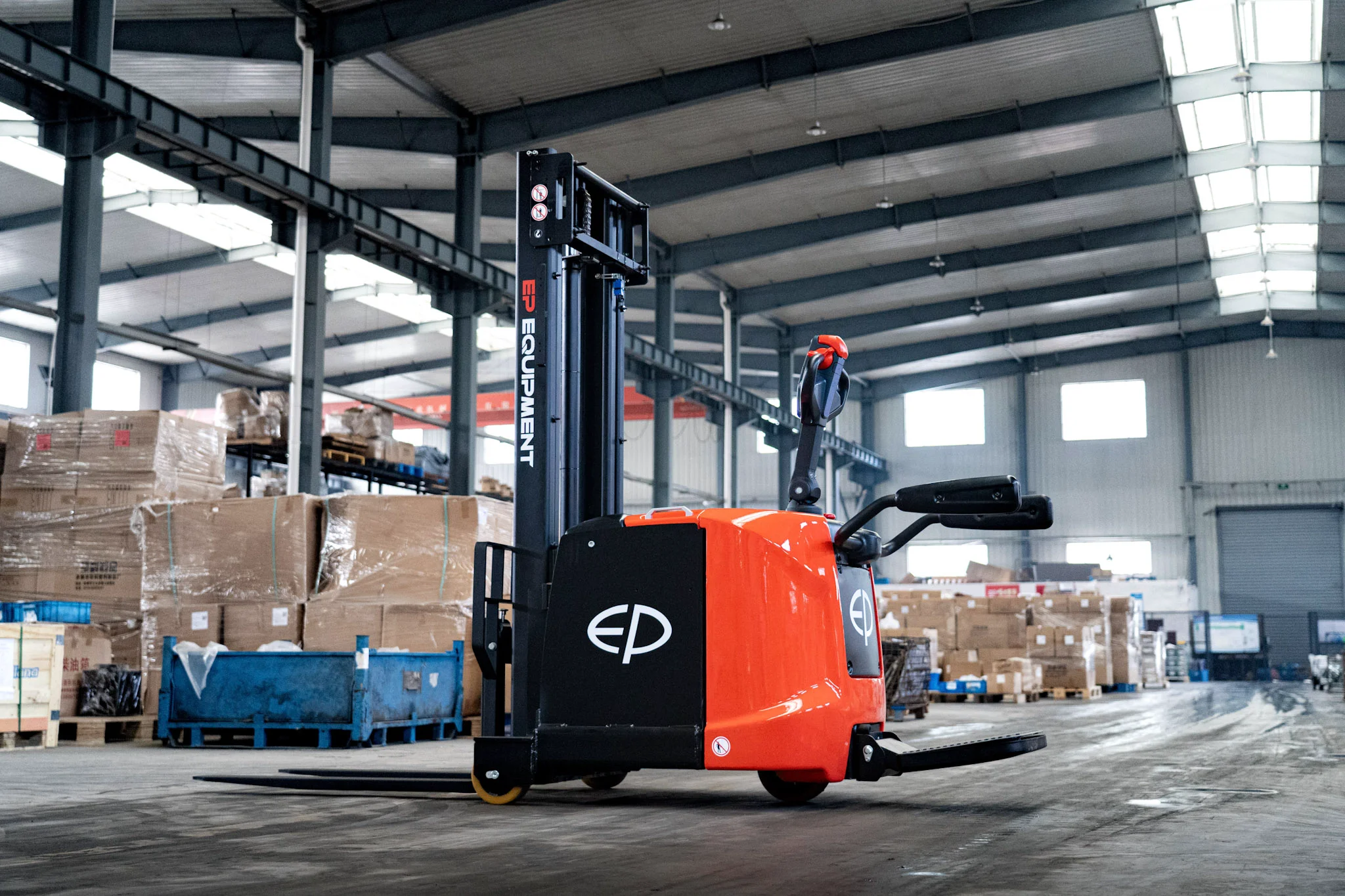

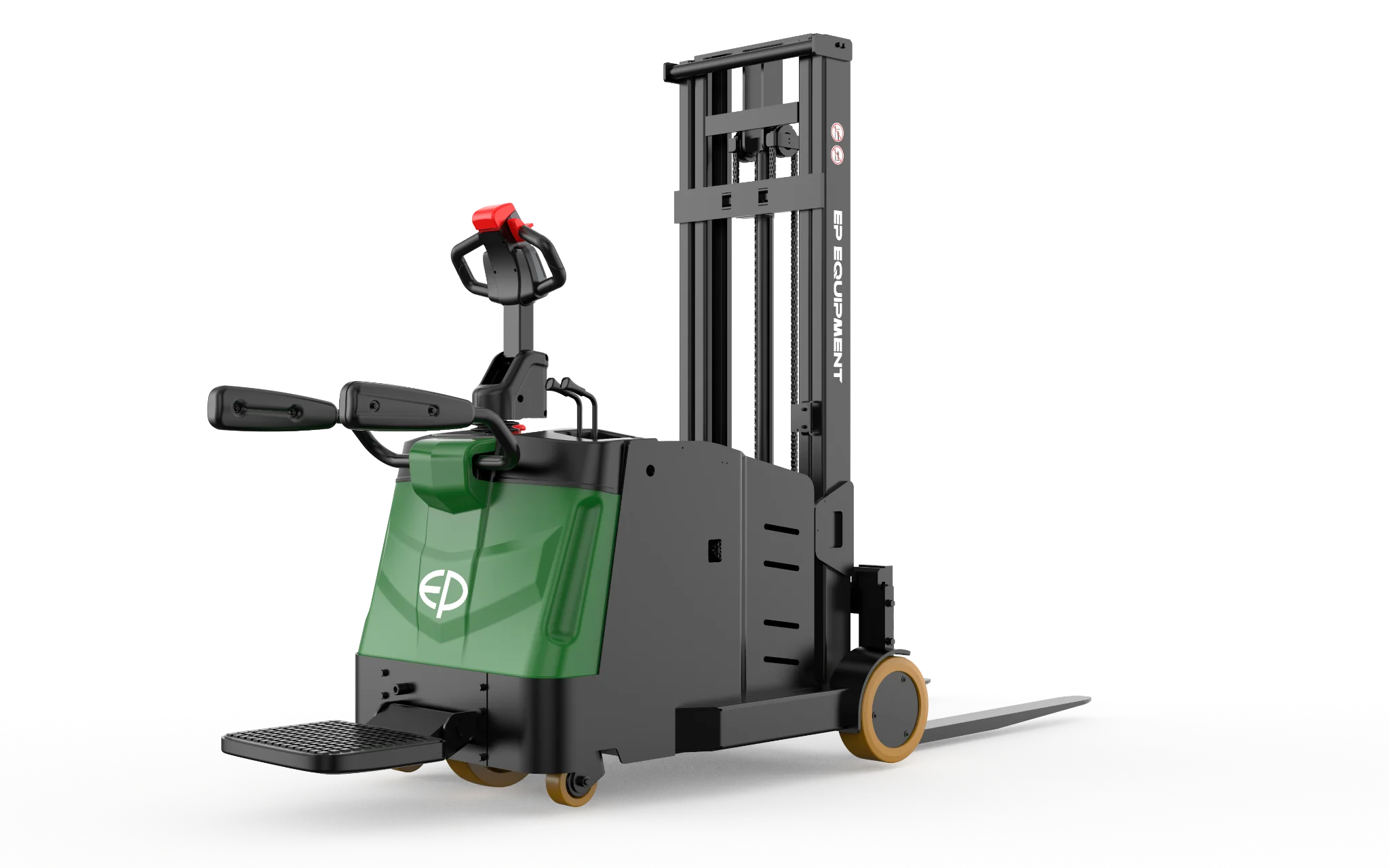

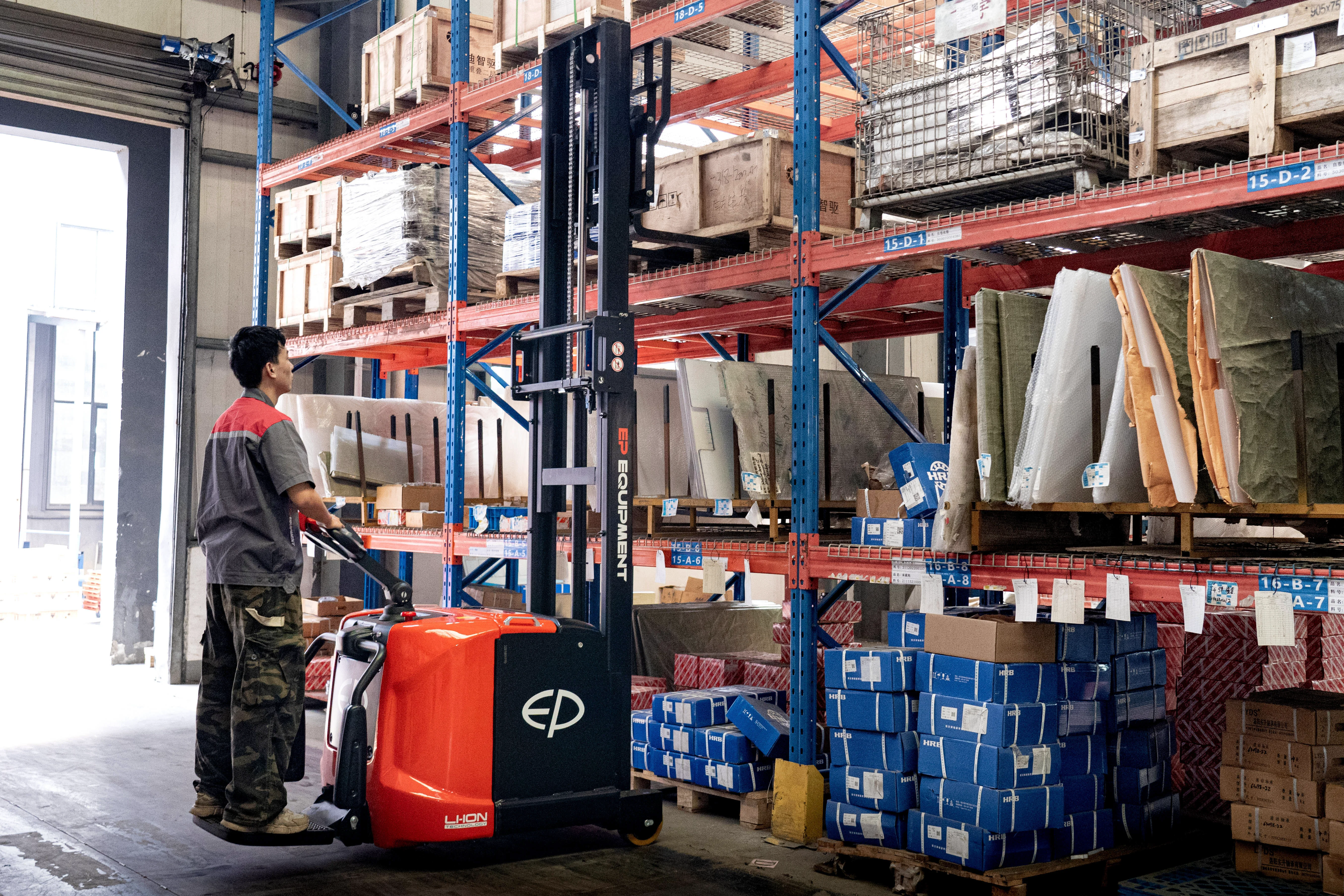

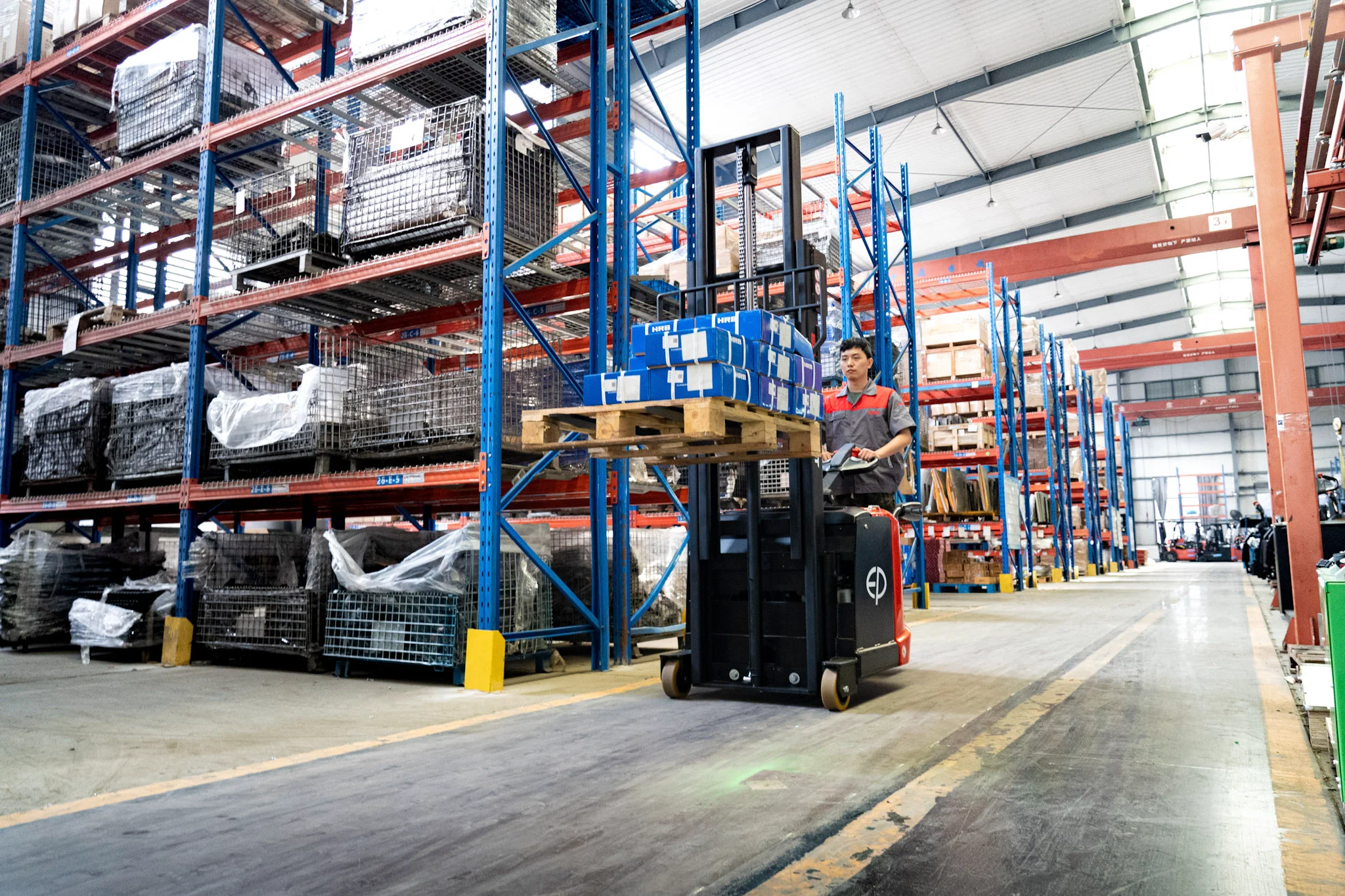

RSC122 Electric Counterbalance Stacker (1.2 t)
Counterbalance stacker that lifts 1.2 t to 3.0 m without outriggers — 1,890 kg counterweight, AC drive and electronic steering for loading docks and workstations.
Capacity
1200 kg
Drive
Electric
Max Lift Height
3000 mm
Travel Speed
5.5/6 km/h
Gradeability
5/8 %
Service Weight
1890 kg
Battery
Lead Acid/Li-ion (24 V)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
RSC122
Drive
Electric
Operator type
Pedestrian
Rated capacity
1200 kg
Load centre distance
500 mm
Load distance, centre of drive axle to fork
118 mm
Service weight
1890 kg
Tyres
Polyurethane
Wheels, number front/rear (x=drive wheels)
1x,/2
Drive motor rating S2 60 min
1.6 kW
Type of drive unit
AC
Sound pressure level at the driver's seat
74 dB(A)
Dimensions
Wheelbase
1074 mm
Axle loading, laden front/rear
420/2670 kg
Axle loading, unladen front/rear
1110/780 kg
Tyre size, front
230×90mm
Tyre size, rear
180×65mm
Tread width, rear
778 mm
Max lift height
3000 mm
Tilt of mast/fork carriage forward/backward
3/3 °
Height, mast lowered
2061 mm
Lift
["3000"] mm
Height, mast extended
3732 mm
Seat height relating to SIP/stand height
148 mm
Height, lowered
60 mm
Overall length
2668 mm
Overall width
900 mm
Fork dimensions
35×100×1070 mm
Fork carriage ISO 2328, class/type A, B
2A
Fork carriage width
620 mm
Ground clearance, laden, below mast
60 mm
Ground clearance, centre of wheelbase
116 mm
Aisle width for pallets 1000×1200 crossways
2979 mm
Aisle width for pallets 800 × 1200 lengthways
3088 mm
Turning radius
1510 mm
Lift speed, laden/unladen
0.13/0.2 m/s
Lift motor rating at S3 15%
2.2 kW
Performance
Travel speed, laden/unladen
5.5/6 km/h
Lowering speed, laden/unladen
0.16/0.15 m/s
Max. gradeability, laden/unladen
5/8 %
Service brake
Electromagnetic
Parking brake
Electromagnetic
Drive & Battery
Battery voltage
24 V
Battery nominal capacity K5
210 Ah
Battery type
Lead Acid/Li-ion
Battery weight
190 kg
Energy consumption according to DIN EN 16796
1.057 ¹⁾kWh/h
Turnover output according to VDI 2198
28.8
Turnover efficiency according to VDI 2198
30.06
Charger output current
30 A
Operation & Environment
Steering design
Electronic
Length to face of forks
1598 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
