TCL1521500 kg

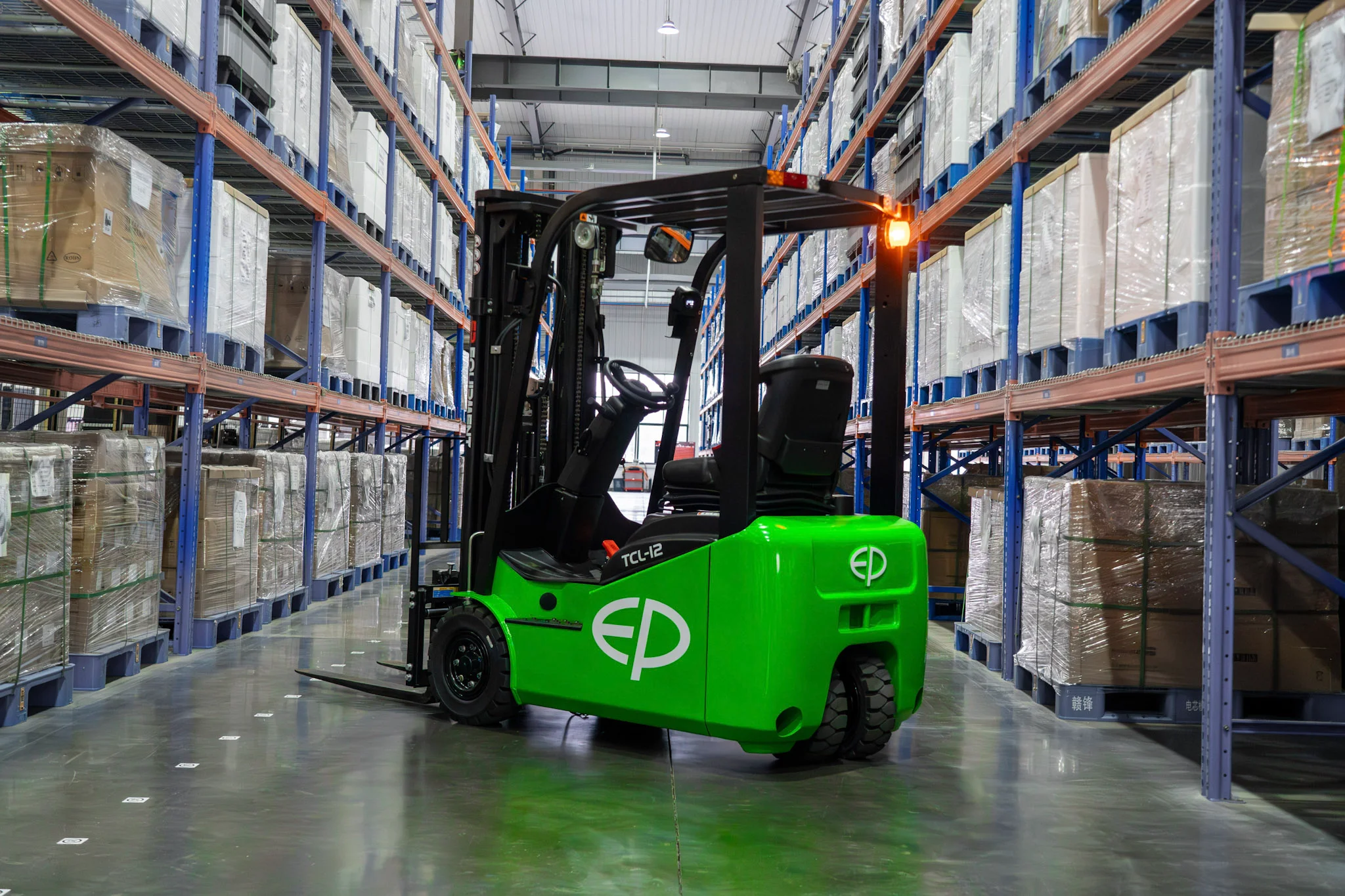

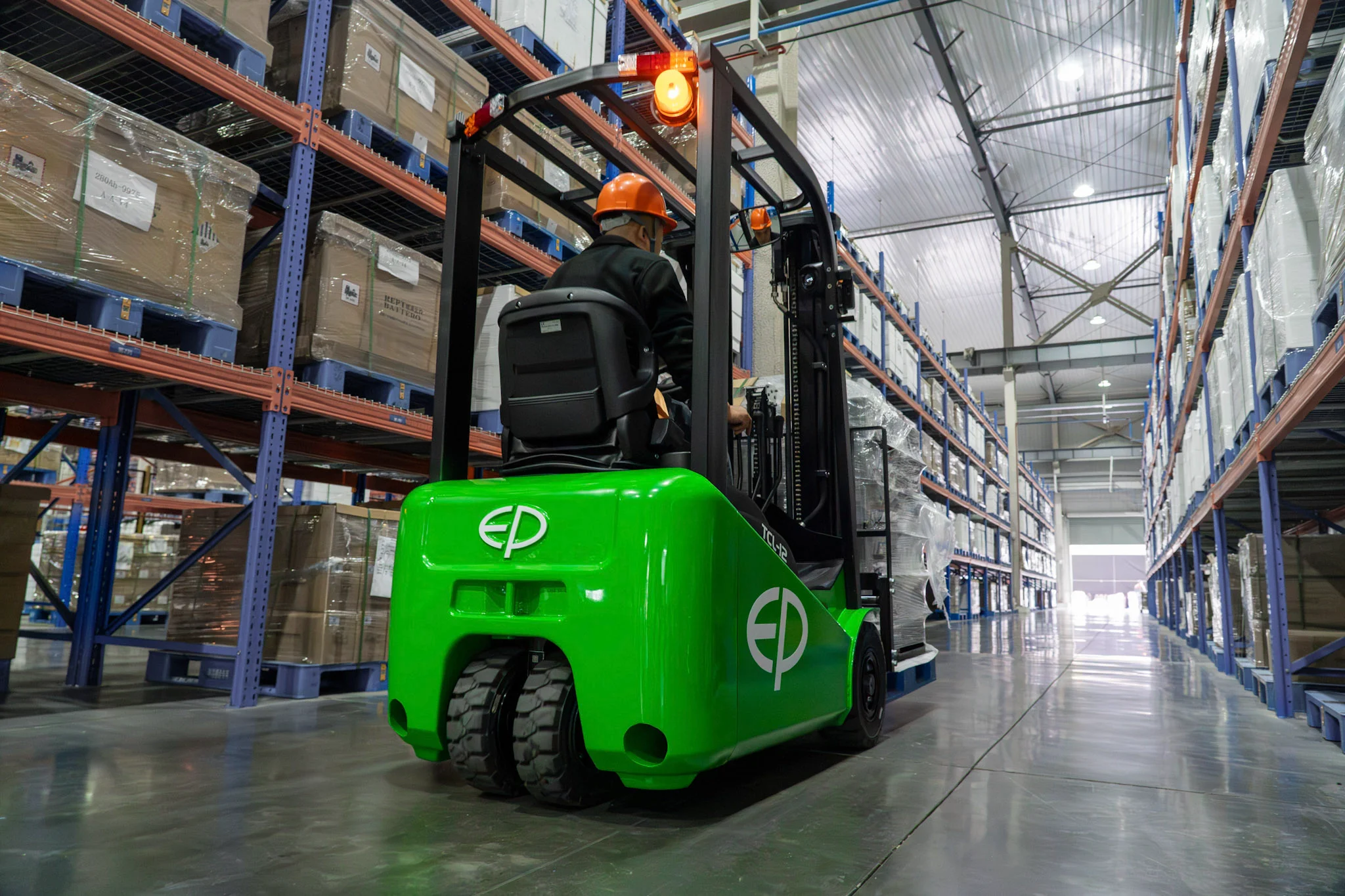

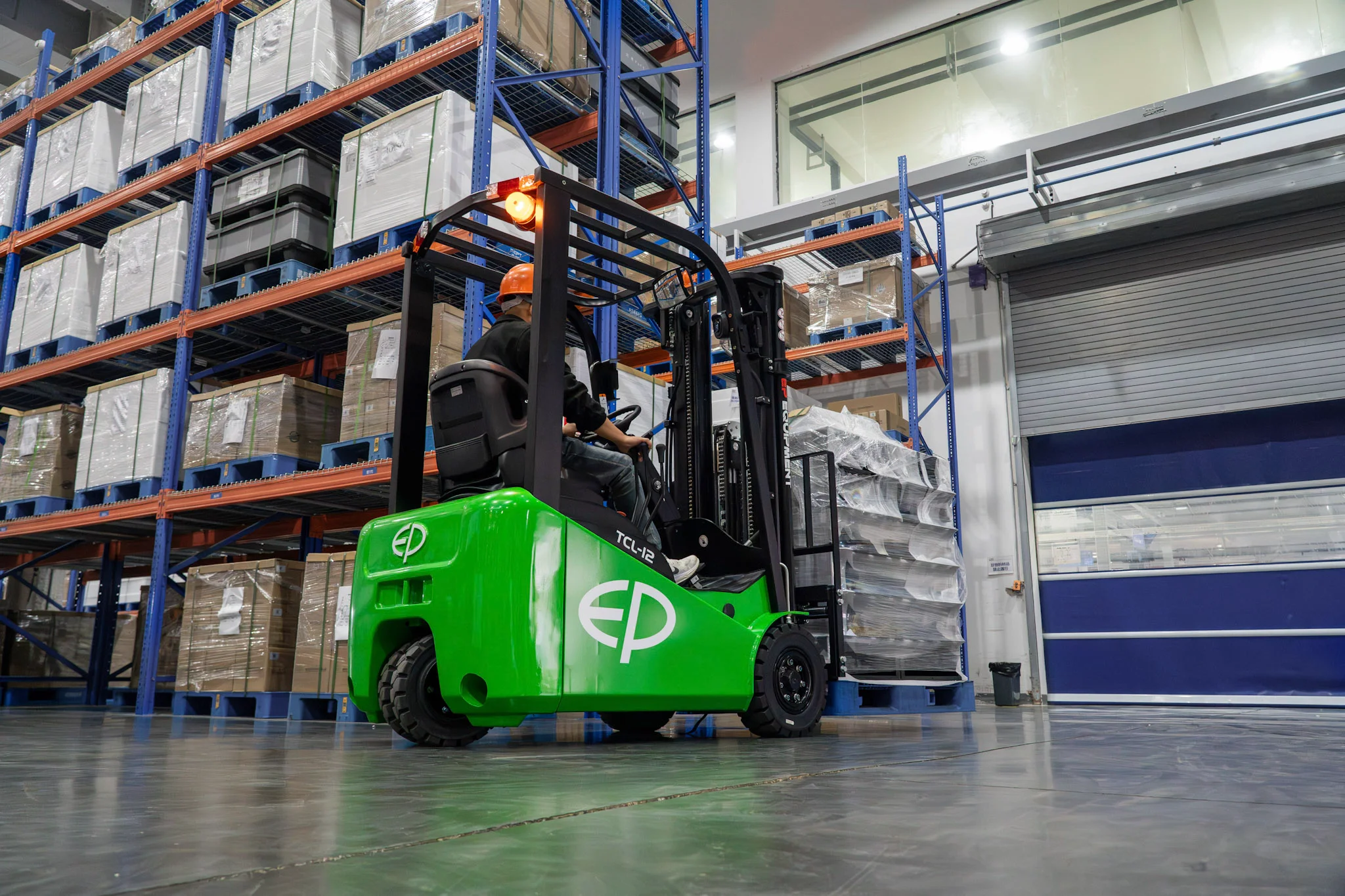

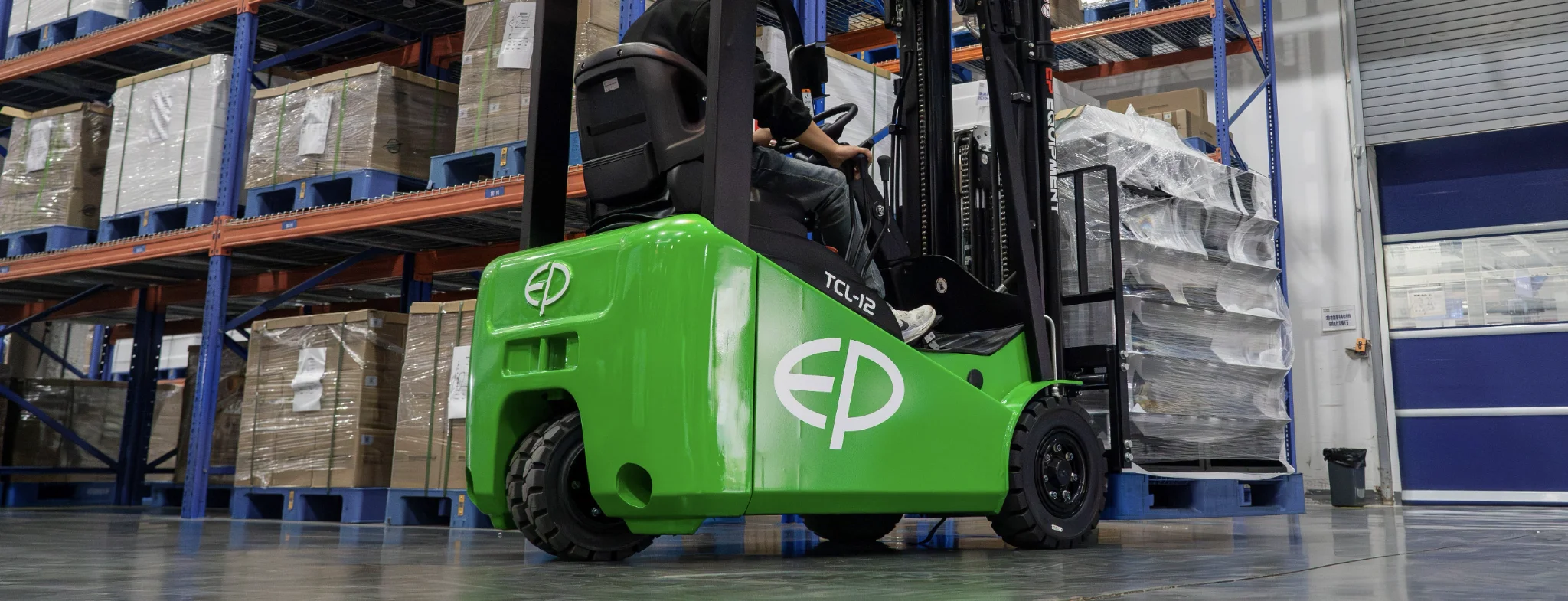

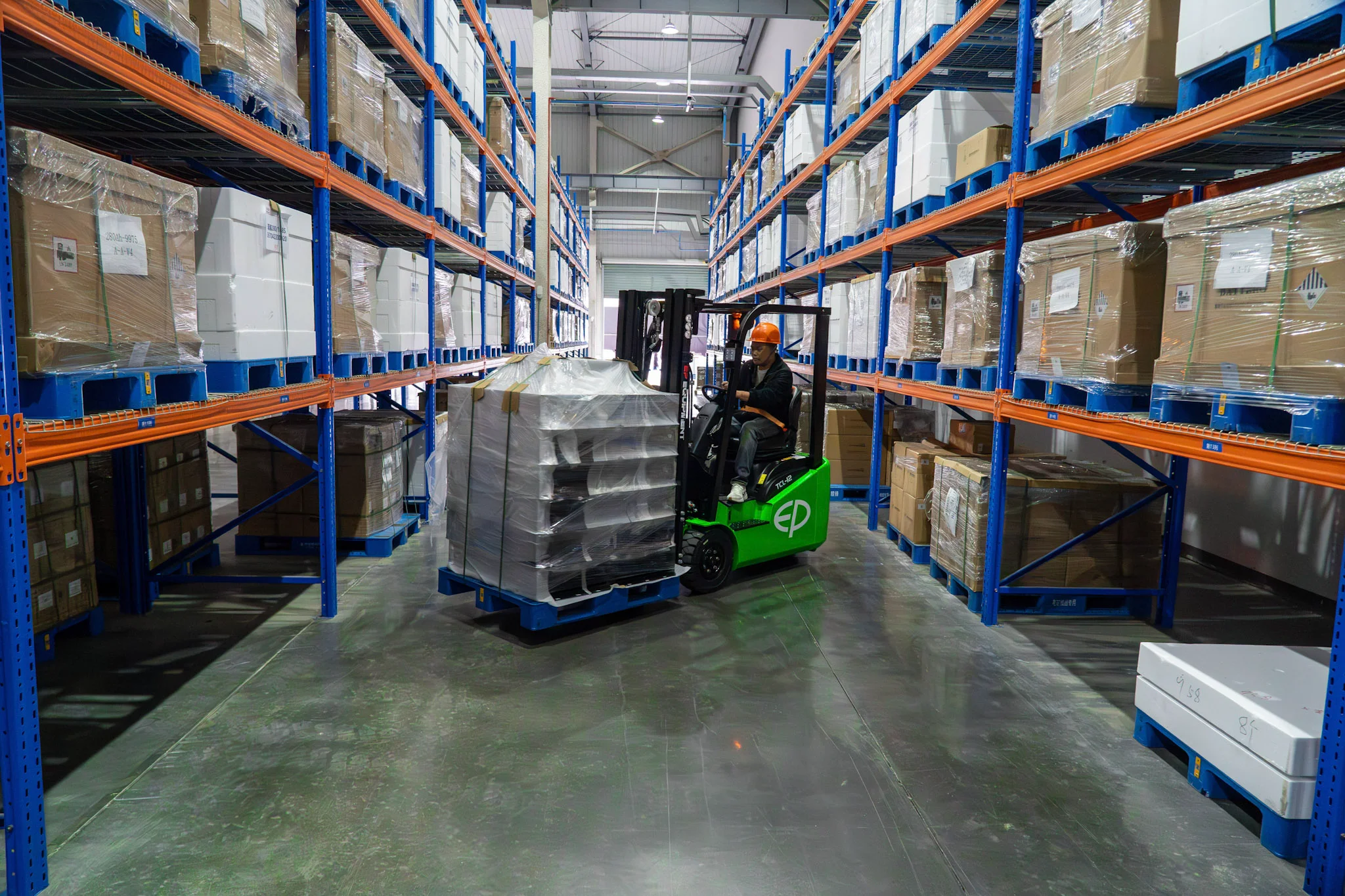

TCL Series 3-Wheel Electric Counterbalance Forklift (1.5 t)
Ultra-compact three-wheel electric forklift with dual AC drive motors — 1.5 t capacity, 1,572 mm turning radius and a 3,260 mm stacking aisle for tight warehouses and containers.
Capacity
1500 kg
Drive
Electric
Max Lift Height
4500 mm
Travel Speed
11/13 km/h
Gradeability
13/15 %
Service Weight
2698 kg
Battery
Li-Ion (80/100V/Ah)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
TCL152
Drive
Electric
Operator type
Seated
Rated capacity
1500 kg
Load centre distance
500 mm
Load distance, centre of drive axle to fork
365 mm
Service weight
2698 kg
Tyres
Solidrubber
Wheels, number front/rear (x=drive wheels)
2X/2
Drive motor rating S2 60 min
2.0X2 kW
Type of drive unit
PMSM
Sound pressure level at the driver's seat
68 dB(A)
Dimensions
Wheelbase
1300 mm
Axle loading, laden front/rear
3681/517 kg
Axle loading, unladen front/rear
1186/1512 kg

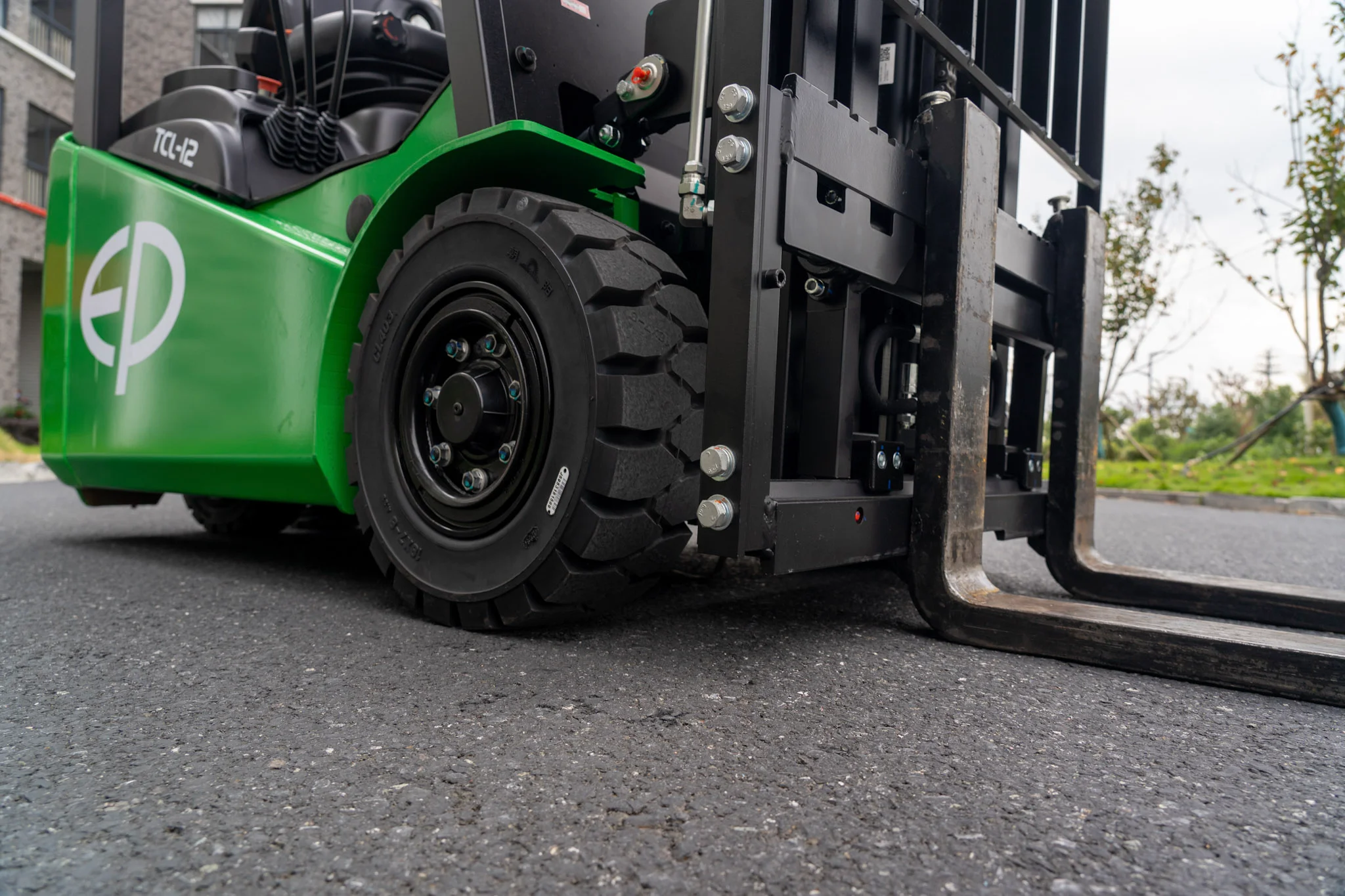

Tyre size, front
18X7-8mm

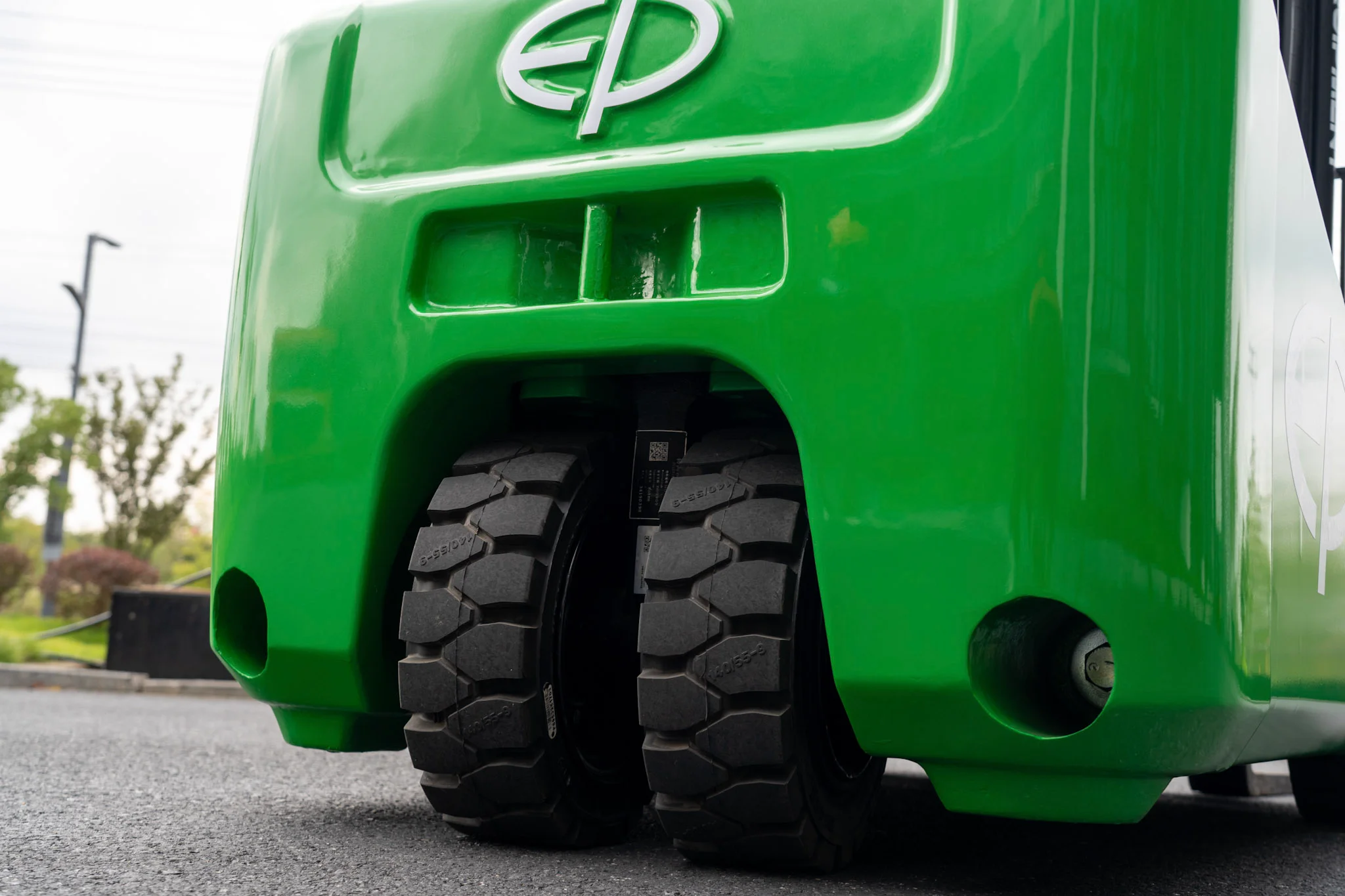

Tyre size, rear
140/55-9mm
Tread width, front
850 mm
Tread width, rear
210 mm
Max lift height
4500 mm
Tilt of mast/fork carriage forward/backward
6/6 °
Height, mast lowered
2048 mm
Overall height
4065 mm
Free lift
105 mm
Lift
3000 mm
Height, mast extended
4055 mm
Height of overhead guard (cabin)
1988 mm
Seat height relating to SIP/stand height
948 mm
Coupling height
513 mm
Overall length
2787 mm
Overall width
1020 mm
Fork dimensions
40X100X920 mm
Fork carriage ISO 2328, class/type A, B
2A
Fork carriage width
960 mm
Ground clearance, laden, below mast
93 mm
Ground clearance, centre of wheelbase
115 mm
Aisle width for pallets 1000×1200 crossways
3260 mm
Aisle width for pallets 800 × 1200 lengthways
3384 mm
Turning radius
1572 mm
Lift speed, laden/unladen
0.28/0.35 m/s
Lift motor rating at S3 15%
7 kW
Performance
Travel speed, laden/unladen
11/13 km/h
Lowering speed, laden/unladen
0.32/0.36 m/s
Drawbar pull, laden/unladen
Drawbar pull, laden/unladen
Max. drawbar pull, laden/unladen
3681/517N
Max. gradeability, laden/unladen
13/15 %
Service brake
Electromagnetic
Parking brake
Electromagnetic
Drive & Battery
Battery voltage/nominal capacity
80/100V/Ah
Battery type
Li-Ion
Battery weight
76 kg
Energy consumption according to DIN EN 16796
4.82kWh/h
Turnover output according to VDI 2198
87
Turnover efficiency according to VDI 2198
21.59
Charger output current
35 A
Operation & Environment
Steering design
Hydraulic
Length to face of forks
1867 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
