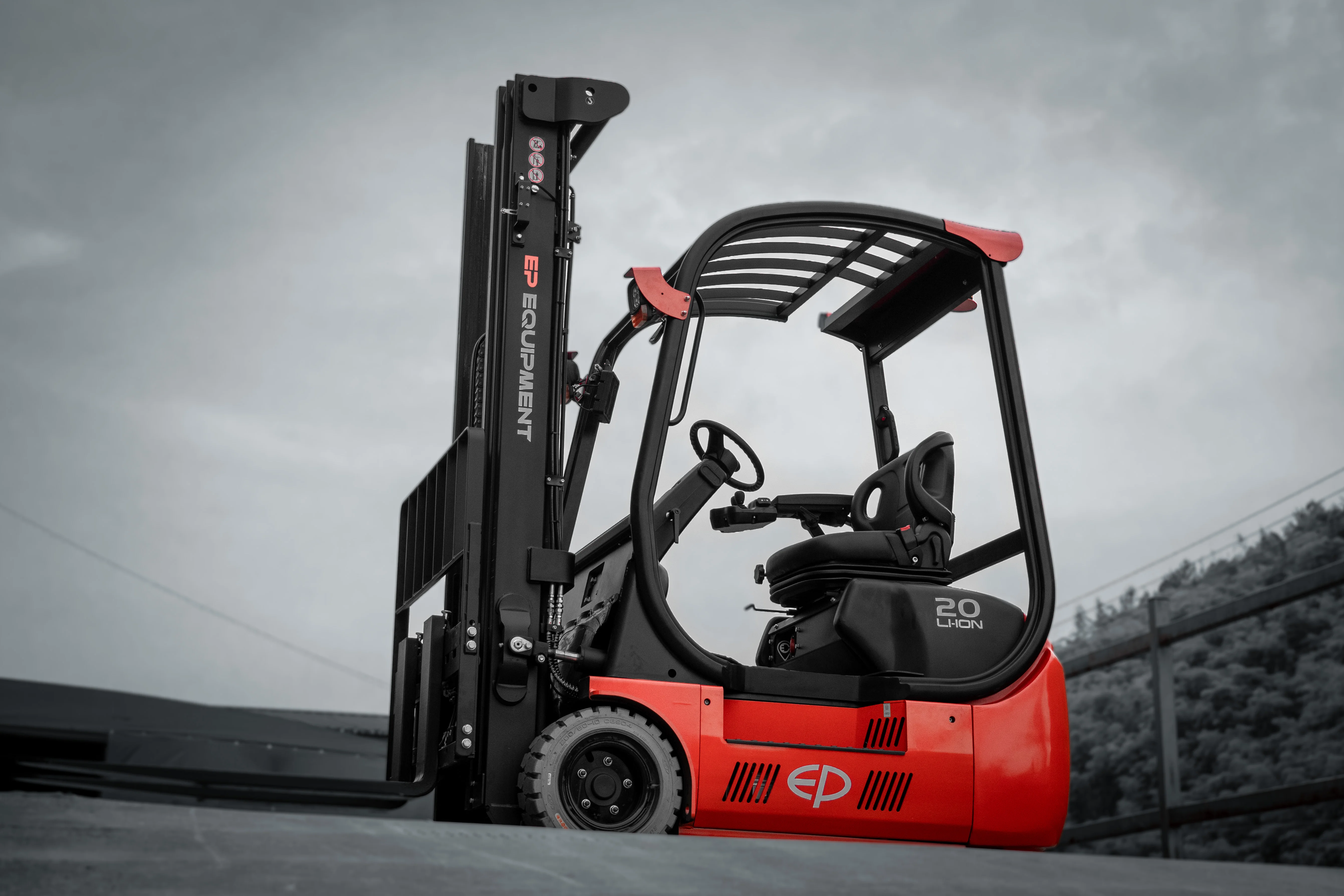

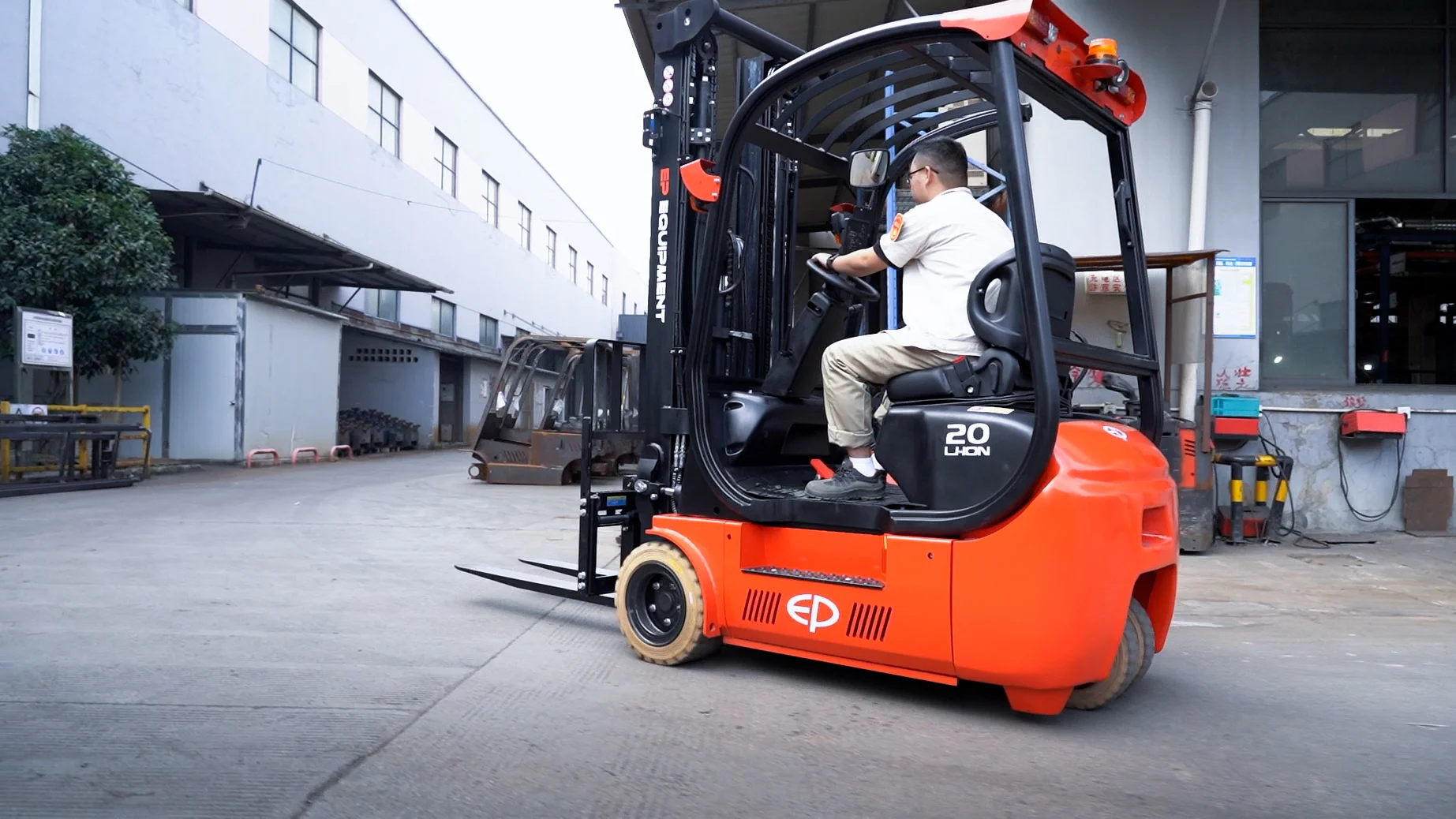

TDL Series 3-Wheel Dual-Drive Counterbalance Forklift (2.0 t)
Three-wheel dual-drive counterbalance truck with 2.0 t capacity and up to 6,000 mm lift height — agile indoors, powerful enough for ramps and loading docks.
Capacity
2000 kg
Drive
Electric
Max Lift Height
6000 mm
Travel Speed
15/16 km/h
Gradeability
15/17 %
Service Weight
3575 kg
Battery
Li-Ion (48 V)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
TDL201
Drive
Electric
Operator type
Seated
Rated capacity
2000 kg
Load centre distance
500 mm
Load distance, centre of drive axle to fork
420 mm
Service weight
3575 kg
Tyres
Solid rubber
Wheels, number front/rear (x=drive wheels)
2X/2
Drive motor rating S2 60 min
5.4X2 kW
Type of drive unit
AC
Sound pressure level at the driver's seat
79 dB(A)
Dimensions
Wheelbase
1358 mm
Axle loading, laden front/rear
4892/683 kg
Axle loading, unladen front/rear
1535/2040 kg
Tyre size, front
200/50-10mm
Tyre size, rear
140/55-9mm
Tread width, front
936 mm
Tread width, rear
210 mm
Max lift height
6000 mm
Tilt of mast/fork carriage forward/backward
5/5 °
Height, mast lowered
2075 mm
Free lift
100 mm
Lift
["3000"] mm
Height, mast extended
4058 mm
Height of overhead guard (cabin)
2140 mm
Seat height relating to SIP/stand height
1070 mm
Coupling height
560 mm
Overall length
3083 mm
Overall width
1150 mm
Fork dimensions
40X122X1070 mm
Fork carriage ISO 2328, class/type A, B
2A
Fork carriage width
1040 mm
Ground clearance, laden, below mast
86 mm
Ground clearance, centre of wheelbase
104 mm
Aisle width for pallets 1000×1200 crossways
3348 mm
Aisle width for pallets 800 × 1200 lengthways
3485 mm
Turning radius
1605 mm
Lift speed, laden/unladen
0.35/0.43 m/s
Lift motor rating at S3 15%
11 kW
Performance
Travel speed, laden/unladen
15/16 km/h
Lowering speed, laden/unladen
0.45/0.37 m/s
Max. gradeability, laden/unladen
15/17 %
Service brake
Electromagnetic
Parking brake
Electromagnetic
Drive & Battery
Battery voltage
48 V
Battery nominal capacity K5
405 Ah
Battery type
Li-Ion
Battery weight
203 kg
Energy consumption according to DIN EN 16796
6.33 ¹⁾kWh/h
Turnover output according to VDI 2198
120
Turnover efficiency according to VDI 2198
20.69
Charger output current
50 A
Operation & Environment
Operating pressure for attachments
180bar
Oil volume for attachments
25ℓ/min
Steering design
Hydraulic
Length to face of forks
2013 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
