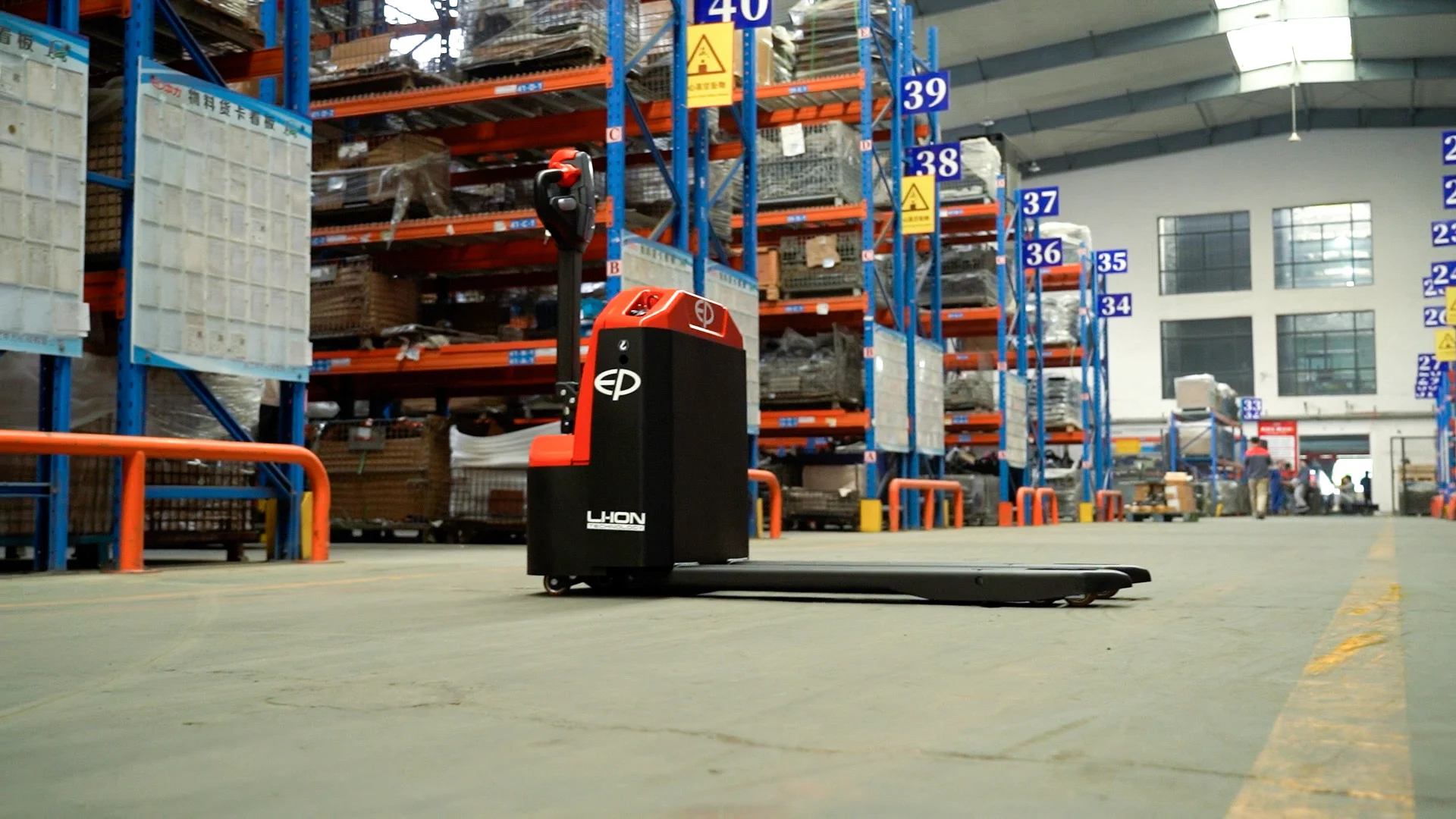

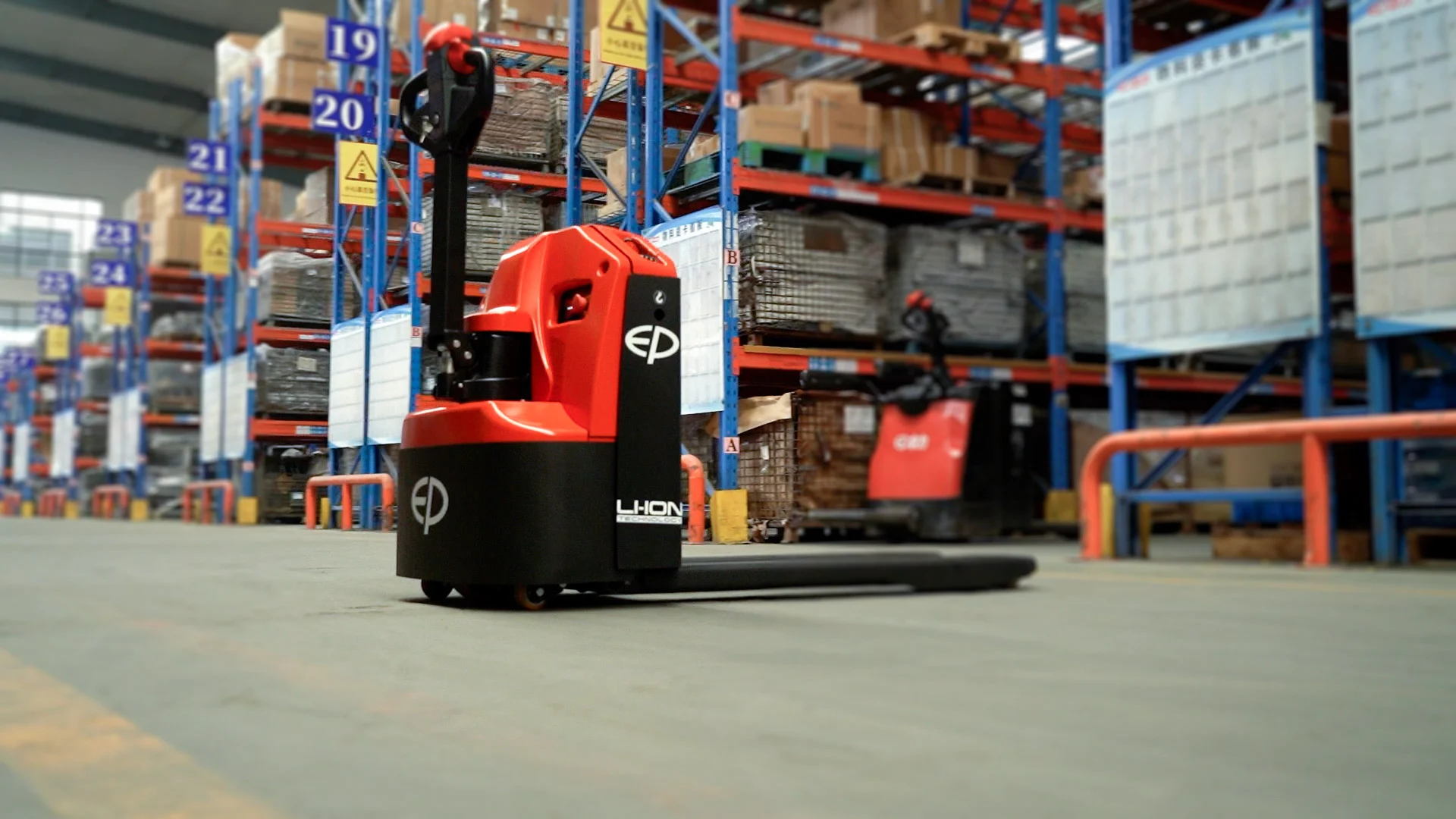

WPL202 Heavy-Duty Li-ion Pallet Truck (2.0 t)
Heavy-duty walkie pallet truck with 2.0 t capacity, 100 Ah Li-ion battery and 5.5/6 km/h travel speed — built for shift-long dispatch and loading-bay cycles.
Capacity
2000 kg
Drive
Electric
Max Lift Height
125 mm
Travel Speed
5.5/6 km/h
Gradeability
10/16 %
Service Weight
320 kg
Battery
Li-Ion (24 V)
Full Specifications
Specification format follows VDI 2198 (industrial trucks) with energy data per DIN EN 16796.
Basic Data
Manufacturer
EP
Model designation
WPL202
Drive
Electric
Operator type
Pedestrian
Rated capacity
2000 kg
Load centre distance
600 mm
Load distance, centre of drive axle to fork
982 mm
Service weight
320 kg
Tyres
Polyurethane
Wheels, number front/rear (x=drive wheels)
1 x +2 / 4
Drive motor rating S2 60 min
1.6 kW
Type of drive unit
AC
Sound pressure level at the driver's seat
70 dB(A)
Dimensions
Wheelbase
1300 mm
Axle loading, laden front/rear
825/1495 kg
Axle loading, unladen front/rear
255/65 kg
Tyre size, front
230x75mm
Tyre size, rear
Ф80x115/Ф85x70mm
Additional wheels (castor wheels)
Ф74x30mm
Tread width, front
483 mm
Tread width, rear
370 mm
Max lift height
125 mm
Lift
["125"] mm
Height drawbar in driving position min./max.
900/1230 mm
Height, lowered
85 mm
Overall length
1620 mm
Overall width
714 mm
Fork dimensions
55/170/1150 mm
Distance between fork-arms
540/685 mm
Ground clearance, centre of wheelbase
27 mm
Aisle width for pallets 1000×1200 crossways
2153 mm
Aisle width for pallets 800 × 1200 lengthways
2080 mm
Turning radius
1320 mm
Lift speed, laden/unladen
0.022 m/s
Lift motor rating at S3 15%
0.8 kW
Performance
Travel speed, laden/unladen
5.5/6 km/h
Lowering speed, laden/unladen
0.039 m/s
Max. gradeability, laden/unladen
10/16 %
Service brake
Electromagnetic
Drive & Battery
Battery voltage
24 V
Battery nominal capacity K5
100 Ah
Battery type
Li-Ion
Battery weight
44 kg
Energy consumption according to DIN EN 16796
0.256kWh/h
Turnover output according to VDI 2198
85.16
Turnover efficiency according to VDI 2198
171.35
Operation & Environment
Steering design
Mechanical
Length to face of forks
470 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
